Can You Install a Solar Ceiling Fan on a Pergola Without Electricity?

Quick Answer
Yes, you can install a solar ceiling fan on a pergola without connecting it to your home’s electrical system. The solar panel generates power during the day, while a rechargeable battery stores energy for evening use. However, the system still requires a secure mounting point, adequate sunlight, and a low-voltage cable connecting the solar panel to the fan.

Introduction
Adding a conventional ceiling fan to a pergola without existing electricity can require new AC wiring, conduit, and professional electrical work. A battery-backed solar ceiling fan provides an alternative by operating independently from the household circuit. This guide explains how the system works, what installation conditions your pergola must meet, where to position each component, and how to choose between a 42-inch and 52-inch fan.

Can a Ceiling Fan Work on a Pergola Without Electrical Wiring?

A conventional outdoor ceiling fan usually requires permanent AC wiring. If your pergola was built without an electrical circuit, adding a hardwired fan may involve trenching, conduit, permits, and professional electrical work.

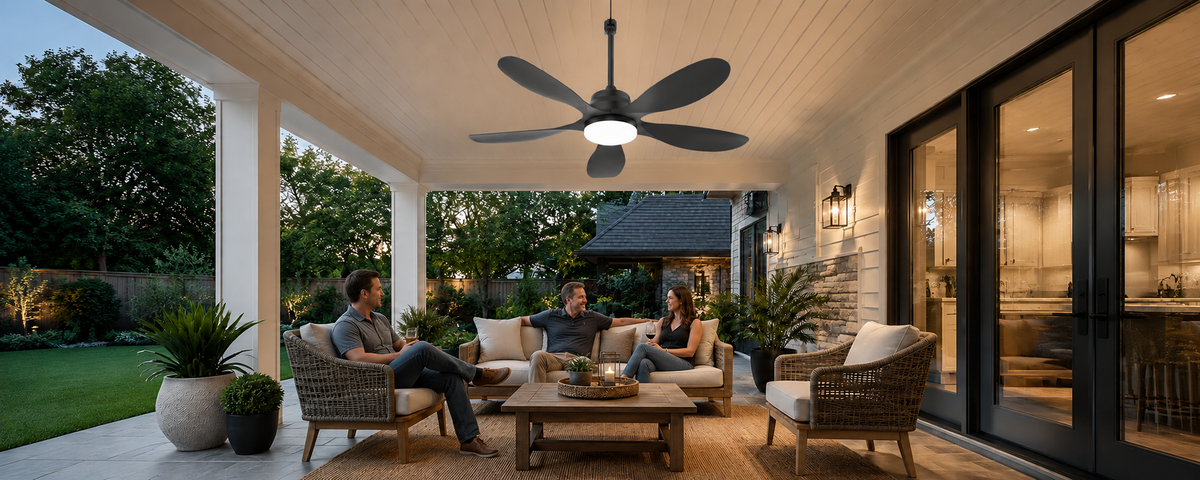

A solar ceiling fan offers another option. Instead of drawing electricity from your home, it operates as part of an independent solar-powered system.

A typical system follows this energy path:

Solar panel → charging controller and battery → ceiling fan and LED light

During daylight hours, the solar panel converts sunlight into electricity. That energy can operate the fan while also charging the battery. Stored battery power then allows the fan or light to continue working when sunlight is weak or unavailable.

For pergolas without convenient household wiring, Ventallion offers two battery-backed options:

Before selecting either size, confirm that your pergola has a suitable mounting point, enough clearance around the blades, a sunny location for the solar panel, and a safe route for the connection cable.

“No household wiring” does not mean “no cable”

A solar ceiling fan does not normally require a connection to your home’s AC circuit, but its components still need to be connected.

For example, a cable may run from the solar panel to the fan or its battery and control system. The cable must be measured, routed, and secured correctly.

In practical terms, a solar ceiling fan can help you avoid:

  • Extending an AC circuit from the house
  • Opening finished walls to install wiring
  • Adding a permanent outdoor outlet solely for the fan
  • Depending on a nearby plug during normal solar operation

It does not eliminate the need to plan how the solar panel and fan will connect.

What Do You Need to Install a Solar Ceiling Fan on a Pergola?

Before buying a solar ceiling fan, check what is included in the system. Not every product automatically includes a battery, solar panel, LED light, remote control, or mounting accessories.

Component Purpose What to check
Solar ceiling fan Creates airflow beneath the pergola Fan diameter, outdoor suitability, speed settings, and mounting requirements
Solar panel Generates electricity from sunlight Panel output, sun exposure, mounting location, and cable reach
Rechargeable battery Stores energy for evening or low-sunlight use Battery chemistry, capacity, and published operating conditions
Controller Regulates charging and power delivery Whether it is integrated or installed separately
Connection cable Connects the solar panel to the system Included length, connector type, and safe routing
Mounting hardware Secures the fan and solar panel Compatibility with the pergola’s beams and roof structure
Remote control Operates the fan and light Speed, timer, light, and direction controls
LED light Illuminates the seating or dining area Brightness and available color-temperature settings

Ventallion solar ceiling fans combine a fan, rechargeable battery, and integrated LED light in one system. They also use a separate solar panel, allowing the fan to remain under the pergola while the panel is positioned where it can receive better sunlight.

Is Your Pergola Suitable for a Solar Ceiling Fan?

The absence of electrical wiring is only one part of the decision. Your pergola must also provide a structurally suitable mounting location, safe clearance, and a practical place for the solar panel.

A secure overhead mounting point

A ceiling fan creates a dynamic load as its blades rotate. It therefore needs more than a convenient-looking surface.

The fan should be attached to a stable structural member suitable for the mounting system. Do not attach it only to:

  • A thin decorative ceiling panel
  • A lightweight roof sheet
  • An unsupported trim board
  • A retractable canopy
  • A movable louver
  • A surface that flexes or vibrates

The mounting surface should remain stable and level while the fan operates. If you are uncertain whether a beam can support a rotating ceiling fan, consult a qualified installer or the pergola manufacturer.

Enough space around and below the fan

Measure more than the width of the pergola. You should also check:

  • The distance between the blades and nearby beams
  • The distance between the blades and side walls
  • The mounting height above the floor
  • The distance from the fan to furniture and fixtures
  • The position of curtains, plants, string lights, and heaters
  • Whether the selected downrod provides appropriate clearance

A fan should not be installed where its blades could contact a beam, fabric panel, hanging plant, light fixture, or other obstruction.

For a dining pergola, place the fan where it can serve the occupied area without creating conflicts with pendant lights or outdoor heaters.

A sunny location for the solar panel

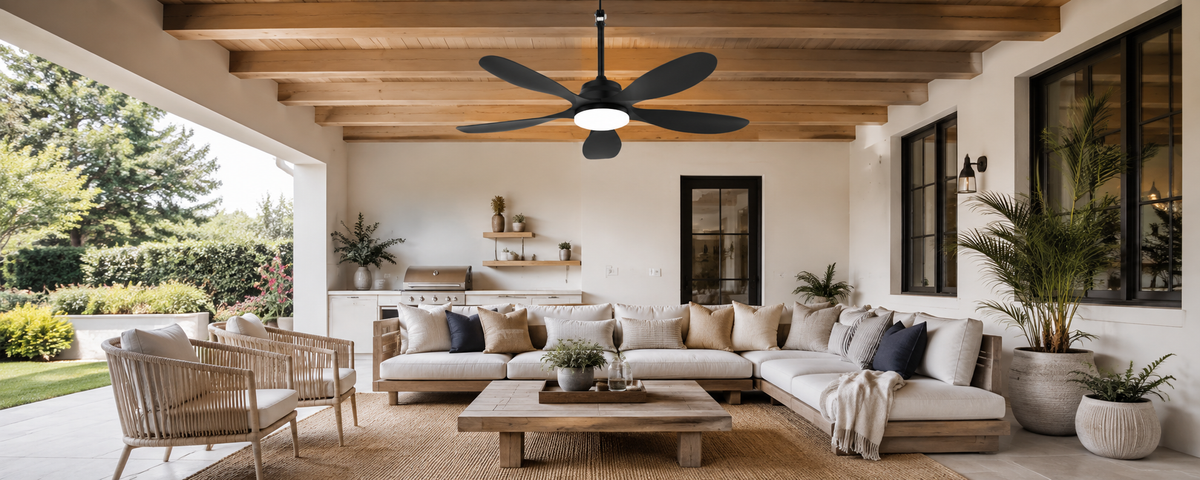

The fan can be installed beneath a shaded pergola because the solar panel does not have to sit directly beside it. The panel can be mounted separately in a location with stronger, more consistent sunlight, provided the included cable can reach safely.

Check the proposed panel location at different times of day. A surface that appears sunny at noon may be shaded during the morning or afternoon by:

  • The house roof
  • Trees
  • Pergola beams
  • Adjustable louvers
  • Nearby fences or buildings

Persistent shade can reduce charging performance and the amount of stored energy available after sunset.

Appropriate protection from weather

Ventallion solar ceiling fans are designed for covered outdoor spaces. Weather-resistant or IP-rated construction should not be interpreted as permission to install every component in any exposed location.

A covered pergola, partially covered pergola, and fully open pergola can expose a fan to very different conditions. Wind-driven rain may reach areas that normally appear protected.

Confirm the installation requirements for the fan, battery system, connectors, solar panel, and control components separately. Do not assume that one component’s IP rating automatically applies to every part of the system.

How to Choose the Right Fan Size for Your Pergola

Fan diameter and airflow coverage are related, but the overall pergola dimensions are not the only factors that affect comfort. Roof height, openness, mounting position, furniture layout, and outdoor wind conditions also matter.

Use the following ranges as practical airflow-coverage guidance:

Fan size Approximate airflow coverage
42-inch solar ceiling fan 12 × 12 ft to 15 × 15 ft
52-inch solar ceiling fan 15 × 15 ft to 20 × 20 ft

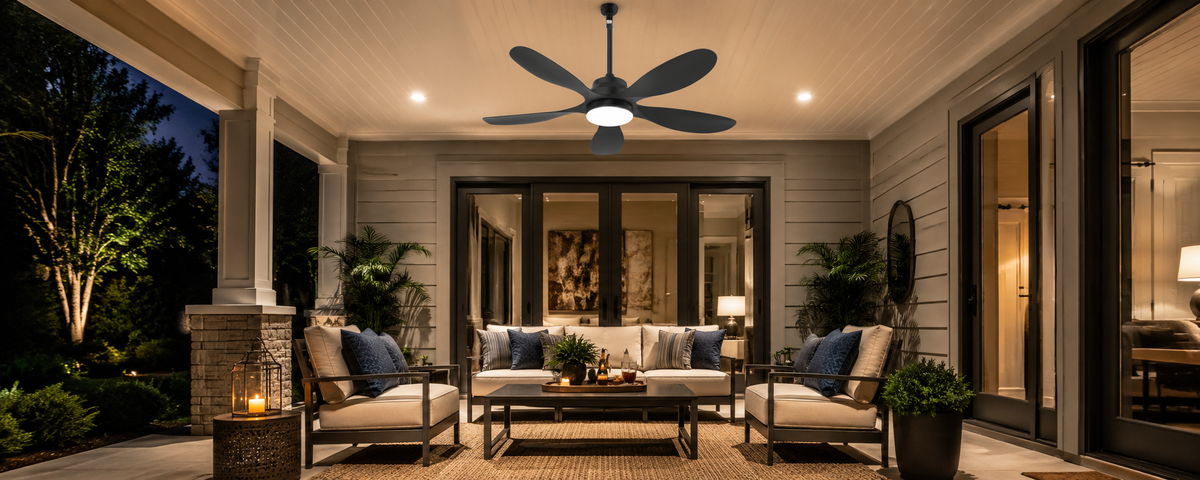

For a pergola from approximately 12 × 12 ft to below 15 × 15 ft, the 42-inch model is generally the more proportionate choice.

At approximately 15 × 15 ft, both sizes fall within the stated coverage ranges. Your decision can depend on:

  • How strong you want the airflow to feel
  • Whether the pergola is enclosed on one or more sides
  • The fan’s distance from the main seating area
  • Available blade clearance
  • Roof and mounting height
  • Whether the space contains one or several activity zones

For spaces above approximately 15 × 15 ft and up to around 20 × 20 ft, the 52-inch model generally provides broader airflow distribution.

These ranges are not hard room-size limits. A fan can still create airflow in a larger pergola, but the air movement may feel weaker or less even near the edges. An oversized, elongated, or divided pergola may benefit from two fans positioned over separate activity areas instead of one fan in the geometric center.

Where Should the Fan, Solar Panel, and Cable Go?

Correct component placement is essential to making an off-grid pergola fan practical.

Fan location

Position the fan according to how you use the pergola. The geometric center is not always the best location.

For example:

  • Place it over the primary seating zone in a lounge area.
  • Center it above the occupied area in an outdoor dining space.
  • In a long pergola, evaluate whether two smaller airflow zones would work better than one central fan.
  • Avoid locations crowded by lights, heaters, curtains, or tall plants.

The final position must also correspond with a secure structural mounting point.

Solar panel location

Look for an area that receives stable sunlight and allows the panel to be mounted securely. Depending on the structure, this could be:

  • On top of a fixed pergola roof
  • On an exterior beam
  • On a nearby wall
  • On another suitable sun-facing structure

The fan and panel do not need to receive the same amount of sunlight. This is one of the most useful advantages of a system with a separate panel: the fan can remain in the shade while the panel collects energy elsewhere.

Avoid positioning the panel where falling leaves, roof runoff, or moving louvers will repeatedly obstruct it.

Cable routing

Measure the complete cable route before selecting the panel location. Do not measure only the straight-line distance.

The actual route may need to travel:

  • Across a roof beam
  • Down a post
  • Around a corner
  • Away from a moving louver
  • Around a gutter or roof edge

Ventallion systems use a separate panel and a 5-meter connection cable. Confirm that the included cable can reach the intended locations without being stretched or left hanging.

Secure the cable along the pergola structure and protect it from:

  • Sharp metal edges
  • Pinch points
  • Moving louvers
  • Standing water
  • High-traffic areas
  • Excessive tension

Do not substitute connectors or extend the cable unless the product instructions specifically permit it. An unapproved extension can affect charging performance, weather protection, or warranty coverage.

Solar vs. Hardwired Pergola Ceiling Fans

Both types of fans can improve comfort under a pergola, but they solve different installation problems.

Factor Solar ceiling fan Hardwired ceiling fan
Household AC connection Not normally required Required
Power source Solar panel and rechargeable battery Home electrical system
Electrical work May avoid extending a new household circuit Often requires compliant permanent wiring
Solar access Necessary for regular solar charging Not required
Evening operation Uses stored battery energy Uses grid electricity
Connection cable Low-voltage system cable remains necessary Permanent AC wiring is necessary
Installation flexibility Panel and fan can be placed separately Fan location depends partly on available wiring
Operation during a grid outage Possible when sufficient battery energy is available Usually unavailable unless the home has backup power
Best application Pergolas without convenient electricity Pergolas with an existing suitable circuit

A solar fan is not automatically cheaper in every installation. Total cost depends on the pergola structure, mounting work, cable routing, access to sunlight, local requirements, and whether professional installation is needed.

However, when a pergola has no existing electrical connection, solar power can avoid the work required to extend a new AC circuit solely for the fan.

How Long Can the Fan Run Without Grid Electricity?

A battery-backed solar ceiling fan can continue operating without grid power, including after sunset. Actual runtime depends on how the system is used and how much solar energy was stored during the day.

Important factors include:

  • Battery capacity
  • Selected fan speed
  • Whether the LED light is on
  • How long the light remains on
  • Available sunlight during charging
  • Seasonal changes in solar exposure
  • Shade on the solar panel
  • Outdoor temperature and operating conditions

Ventallion’s 42-inch model uses a 10,000mAh LiFePO4 battery, while the 52-inch model uses a 12,000mAh LiFePO4 battery. Both models also support alternative Type-C or 48W adapter charging when solar conditions are insufficient and another charging source is available.

Published runtime figures should always be interpreted alongside their operating conditions. Running the fan at a low speed without the light requires less energy than operating the fan and light together at high settings.

For that reason, do not choose a system based on a single maximum-runtime number. Compare the operating mode most closely related to how you expect to use the pergola.

Step-by-Step Installation Overview

The following is a planning overview, not a replacement for the supplied installation manual.

  1. Measure the pergola. Record its length, width, mounting height, beam spacing, and the dimensions of the main occupied area.
  2. Inspect the mounting location. Identify a stable structural member rather than a decorative panel or movable roof component.
  3. Select the fan size. Use the approximate airflow-coverage ranges together with the pergola’s shape, openness, and activity zones.
  4. Check blade and floor clearance. Account for beams, walls, lighting, furniture, heaters, plants, and other obstructions.
  5. Choose a solar-panel location. Observe the area for shade at different times of day.
  6. Measure the complete cable route. Include turns, vertical sections, and the path around roof features.
  7. Install the mounting bracket and fan. Follow the fastener, bracket, downrod, and assembly instructions supplied with the product.
  8. Secure the solar panel. Use a stable mounting location and the approved panel hardware.
  9. Connect and secure the system cable. Keep it away from sharp edges, moving parts, water-collection points, and walkways.
  10. Charge and test the system. Test every fan speed, the remote control, the LED light, direction settings, and any timer functions.
  11. Check fan operation. Watch for unexpected movement, contact with surrounding objects, abnormal vibration, or unusual noise.

Always follow the product manual. If the pergola structure, mounting surface, or local installation requirements are uncertain, use a qualified installer.

Common Mistakes to Avoid

1. Assuming solar means completely wireless
The fan may not need household AC wiring, but the solar panel still needs a low-voltage connection to the system.

2. Mounting the fan to a decorative surface
Thin panels and lightweight trim may not provide a suitable structural connection for a rotating ceiling fan.

3. Choosing a size based only on total area
A long, narrow pergola behaves differently from a square space with the same area. Mounting height and activity zones also affect airflow.

4. Installing the panel in persistent shade
A shaded fan location is acceptable when the panel can be placed in the sun. A heavily shaded panel, however, can reduce charging performance.

5. Ignoring the actual cable route
The included cable must follow the pergola structure. Straight-line measurements can underestimate the required length.

6. Extending or modifying the cable without approval
Different cables or connectors can affect electrical performance and weather resistance. Follow the manufacturer’s instructions.

7. Treating IP65 as “waterproof in every situation”
An IP rating has a specific meaning and does not necessarily make every component suitable for prolonged, fully exposed installation. Ventallion fans should be positioned in an appropriate covered outdoor setting.

8. Expecting identical runtime in every operating mode
High fan speed and simultaneous lighting consume more battery energy than low-speed, fan-only operation.

Is a Solar Ceiling Fan Right for Your Pergola?

A solar ceiling fan is a strong option when the pergola lacks convenient AC power but still has the structural and solar conditions needed for the system.

A good fit when... Reconsider when...
Your pergola has no convenient household wiring There is no secure overhead mounting point
A separate panel can receive adequate sunlight The panel would remain heavily shaded throughout the day
You want to avoid extending an AC circuit The pergola is too low to provide safe clearance
Battery-supported evening use meets your needs You require continuous operation regardless of charging conditions
The cable can be routed safely along the structure The cable cannot reach without an unapproved extension
The fan can remain in a covered outdoor location The installation would expose unsupported components to unsuitable weather

For approximate airflow coverage:

  • Choose a 42-inch solar ceiling fan for pergola areas around 12 × 12 ft to 15 × 15 ft.
  • Consider either size at approximately 15 × 15 ft, depending on clearance, desired airflow, and layout.
  • Choose a 52-inch solar ceiling fan for broader areas around 15 × 15 ft to 20 × 20 ft.
  • For larger or divided pergolas, evaluate the occupied zones before assuming one fan will distribute air evenly throughout the entire structure.

FAQ

Can you run a pergola ceiling fan without household electricity?

Yes. A solar ceiling fan generates power through a solar panel and stores energy in a rechargeable battery. It does not normally need to connect to your home’s AC circuit, making it suitable for pergolas without existing electrical wiring.

Does a solar ceiling fan work at night?

A battery-backed model can operate after sunset using energy stored during the day. Nighttime runtime depends on the battery charge, fan speed, light use, solar conditions, and the product’s tested operating mode.

Does a solar ceiling fan require any wiring?

It does not require conventional household wiring during normal solar operation, but it is not completely wireless. A low-voltage cable connects the separate solar panel to the fan or its charging system.

Can the solar panel be installed away from the pergola?

Yes, provided the location is structurally suitable, receives adequate sunlight, and remains within the reach allowed by the included cable. The panel and fan do not need to be installed directly beside each other.

Can you mount a ceiling fan directly to a pergola beam?

Potentially, but the beam and mounting method must be suitable for the fan’s dynamic load. Do not attach the fan only to a thin roof panel, movable louver, or decorative board. Consult a qualified installer if the structure is uncertain.

What size solar ceiling fan is suitable for a 12 × 12 ft pergola?

A 42-inch Ventallion solar ceiling fan is generally the more proportionate option. Its approximate airflow-coverage range is 12 × 12 ft to 15 × 15 ft, although mounting height, openness, and furniture layout can affect the result.

Can a solar ceiling fan stay outside in the rain?

Ventallion solar ceiling fans are intended for appropriate covered outdoor applications. Weather-resistant or IP65 construction should not be interpreted as unlimited protection in every exposed installation. Check the requirements for the fan and every connected component before choosing the location.

Recommended Outdoor Solar Ceiling Fan Guides

View more
