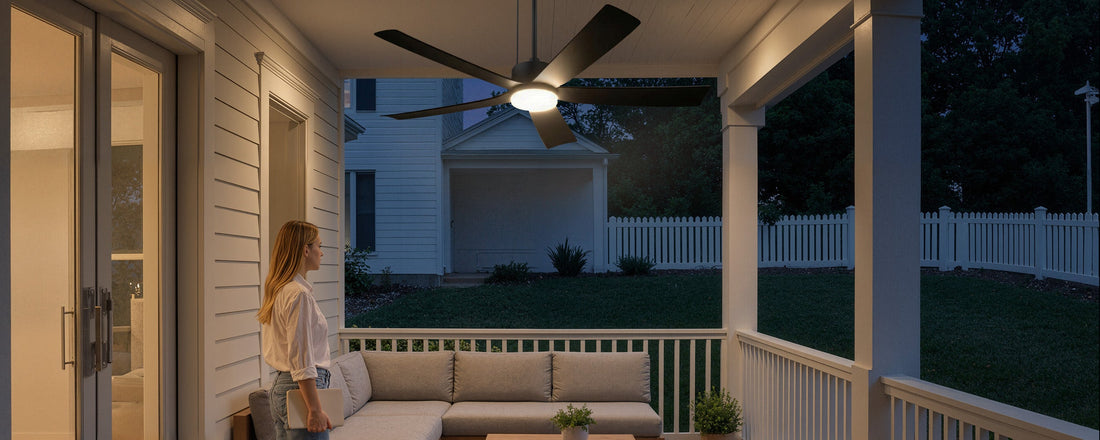

Installing a Solar Ceiling Fan Light on a Covered Patio Without Touching Existing Wiring: The Full Sequence from Unboxing to First Run

A covered patio can stay hot and dark long after sunset, especially when there is no nearby power source. In that situation, the right solar ceiling fan needs four things: safe overhead mounting, a separately placed panel that can reach direct sun, battery storage for evening use, and enough airflow for the actual seating area. The Ventallion Outdoor Solar Ceiling Fan with Light & Battery fits that job because it mounts like a ceiling fan, charges from a remote panel, and uses LiFePO4 battery storage so the fan and light can run without tying into house wiring.

That no-wiring approach is what makes this project realistic for a covered patio, pergola, porch, gazebo, or shed where opening finished ceilings would be expensive and slow. Ventallion offers a 42-inch solar ceiling fan for compact to medium spaces and a 52-inch solar ceiling fan for broader airflow, so your first decision is size, not electrical planning.

Decide whether a no-wiring solar ceiling fan fits your patio

A no-wiring ceiling fan makes sense when your structure is already covered, overhead mounting is possible, and the biggest obstacle is missing electrical access. Instead of trenching cable or adding a new branch circuit, you use a separate solar panel, a battery controller, and a fan designed for independent power.

Where this setup works best

• Covered patios with finished ceilings
• Pergolas with overhead beams
• Gazebos with a center mounting point
• Covered porches with limited wiring access
• Sheds, barns, and storage rooms needing airflow

Pick the right size before you open the box

The 42-inch solar ceiling fan is the better fit for roughly 12 ft x 12 ft to 15 ft x 15 ft covered areas. The 52-inch solar ceiling fan is better for about 15 ft x 15 ft to 20 ft x 20 ft layouts where seating spreads wider and you want a larger breeze pattern.

• Choose 42 inches for smaller patios, a solar fan for 10x10 gazebo, compact porches, and tighter clearances.
• Choose 52 inches for a wider covered patio fan, larger pergola ceiling fan layouts, and broader outdoor seating zones.
• If beams, posts, or hanging lights crowd the ceiling area, the smaller span is usually easier to place cleanly.

Check the patio, structure, and sun path before installation

This is the part that prevents rework. A solar-powered outdoor fan is easy to like on paper, but the install goes smoothly only when the ceiling support, blade clearance, and panel location make sense together.

What to verify first

• Confirm the fan will hang in a covered outdoor area, not an exposed open-sky location.
• Check that the mounting point is structurally sound and suitable for a ceiling fan load.
• Measure from blade path to beams, posts, décor, and door swings.
• Find a panel location with stronger direct sunlight than the shaded ceiling area.
• Make sure the cable route avoids pinch points, sharp edges, and foot traffic.

Tools and setup items to have ready

• Ladder
• Drill/driver
• Screwdrivers
• Tape measure
• Pencil or painter's tape
• Stud or structure finder if needed
• Exterior-rated cable clips or cable ties

Safety details that matter before you climb

Portable ladders should be set on a level, firm base and secured against slipping, and OSHA also warns you to look for overhead electrical hazards before handling a ladder. That matters here even on a no-house-wiring project, because you may still be carrying a ladder near nearby service lines, lighting circuits, or exterior conductors on the property. According to OSHA, stable placement and hazard awareness are basic ladder-safety requirements for elevated work.

Lay out the full installation path before drilling anything

A clean install starts on the ground. Both Ventallion fan sizes use the same core logic: mount the fan under cover, place the solar panel where sunlight is better, route the cable neatly, connect the battery controller, then test fan and light operation.

What comes with the Ventallion setup

The 42-inch and 52-inch models include a 40W solar panel, a battery controller, and two downrods measuring 10 inches and 5 inches. Both also support separate solar panel placement with a 5-meter cable, which is what allows the fan to stay under a roofed patio while the panel charges in a sunnier spot.

Why layout planning saves time

• You avoid drilling twice because the fan center was wrong.
• You can choose the right downrod length before lifting the motor.
• You see whether the panel cable can reach the best sun-facing spot.
• You keep the battery controller accessible for future checks.

Unbox and inspect every part against your patio layout

Before you touch the ceiling, spread the components on a protected flat surface and confirm the system matches the structure you measured. A good off-grid ceiling fan install begins with fit, not speed.

What to do

• Group the fan body, blades, light parts, downrods, panel, controller, remote, and hardware.
• Compare blade span to the actual open ceiling zone.
• Check the 5-inch and 10-inch rods against beam depth and headroom.
• Identify where the battery controller can sit without becoming hard to access.

Why this matters

Ventallion's 42-inch model uses a 10,000mAh LiFePO4 battery, while the 52-inch model uses a 12,000mAh LiFePO4 battery. That difference affects evening runtime, but the physical install details matter just as much. If the fan hangs too low or too close to a beam, the better battery will not fix poor placement.

What to watch

• Damaged blade edges
• Missing hardware bags
• Remote or controller packed separately
• Panel bracket parts mixed into small boxes

Mark the best mounting point over the area you actually use

The best location is rarely dead center of the entire roof. A covered patio fan should sit over the real seating or circulation zone, as long as blade clearance and structure support are still correct.

What to do

• Stand under the patio and mark the center of the area where people sit most often.
• Shift the mark if needed to stay clear of beams, trim, or hanging lights.
• Recheck side clearance from the future blade path.
• Confirm the mount lands on a solid structural section, not just finish material.

Common mistake

Many homeowners center the fan on the roofline instead of the use area. That can leave the breeze over an empty edge while the table or chairs stay warm.

Sizing reminder at this point

• Use the 42-inch unit for tighter footprints and a solar porch fan layout.
• Use the 52-inch unit where a pergola ceiling fan needs to cover a wider rectangle.
• For a compact gazebo solar fan setup, the smaller blade span is usually easier to place without clearance issues.

Assemble the downrod and motor housing at ground level

This step is where you reduce ladder time. The fan is easier to align, and you are less likely to miss a small fastener, when the hanging parts are assembled before lifting.

What to do

• Choose the shorter drop if your ceiling height is modest or the fan must stay higher.
• Use the longer configuration if beams or trim require more hanging distance.
• Secure the downrod and motor housing connections on the ground.
• Pre-stage blade hardware and light components in install order.

Why this matters

The Ventallion system includes both a 5-inch and a 10-inch downrod, and the product pages note they can be used separately or connected together depending on the setup. That gives you flexibility for patios, gazebos, barns, and sheds where beam depth or ceiling trim can change how low the motor should sit.

What to watch

• Do not guess clearance after the fan is overhead.
• Keep blade screws sorted by set.
• Confirm the rod choice still leaves comfortable walking and visual clearance below.

Mount the fan body, then finish the blades and light assembly

Once the bracket and main body are secure, finish the mechanical build before you start cable routing. That sequence lets the power path follow the fan's final position instead of a guessed one.

What to do

• Secure the mounting hardware to the prepared overhead point.
• Lift and hang the fan body according to the included sequence.
• Attach blades evenly and check their spacing.
• Complete the light assembly and any lens or cover parts.

Why this matters

A ceiling fan is an air-circulation device first, and the U.S. Department of Energy defines ceiling fans as suspended, nonportable products that move air through rotating blades. That sounds obvious, but it is a good reminder that mounting stability and blade alignment affect both comfort and long-term operation. According to the Department of Energy, ceiling fans are regulated as energy-using air-circulation products, so proper installation supports the efficiency and airflow you expect.

Product fit in this step

For a medium patio or a wireless outdoor fan retrofit where you want a smaller visual footprint, the 42-inch Ventallion model is easier to place. For broader solar lighting and airflow across a larger seating layout, the 52-inch version gives the blade span that a bigger covered space usually needs.

Install the solar panel in the sunniest practical location

This is the step that makes a covered install work. The fan itself belongs under cover, but the panel should go where charging conditions are stronger, even if that location is a roof edge, upper frame section, fence line, or another nearby sunny surface.

What to do

• Test likely panel spots during the brightest part of the day.
• Favor longer direct-sun exposure over visual symmetry.
• Use the included bracket and secure the panel firmly.
• Keep the cable path in mind before final tightening.

Why this matters

Ventallion's fan pages state that the solar panel can be installed separately for better sunlight access and includes a 5-meter cable for flexible positioning. That matters on a patio where the ceiling may stay shaded most of the day. A solar fan with battery backup works best when the charging side is optimized first.

Best location examples

• Roof-adjacent edge above the covered section
• Pergola top with less shade
• Fence or frame area that gets stronger afternoon sun
• Barn or shed roof section facing the clearest sky

Shop: Ventallion 52-Inch Outdoor Solar Ceiling Fan with Light & Battery

Route the cable neatly and position the battery controller where you can reach it

The system will look better and last longer if the cable run is protected and intentional. This is where many DIY installs go from functional to clean.

What to do

• Follow beams, ceiling edges, or structural lines where the cable is less exposed.
• Use exterior-rated clips or ties to prevent sagging.
• Keep cable away from sharp corners and moving parts.
• Place the battery controller where future inspection stays easy.

Why this matters

The battery controller is part of the operating path between the panel and the fan, so hiding it too aggressively can make troubleshooting harder later. Ventallion also notes MPPT charging control on the 42-inch product page, which means the controller is actively managing solar input rather than acting as a simple pass-through connection.

Common mistake

Do not route the cable across open walking areas or leave a loose hanging loop where wind can pull on it. A tidy route protects the system and keeps the patio looking finished.

Charge the system and run a complete first-use test

The first test is not just a power-on check. It should confirm charging, remote response, fan speeds, light modes, airflow direction, and expected battery-backed operation after daylight drops.

What to do

• Give the system time to build charge before judging runtime.
• Test fan start-up with the remote.
• Cycle through all six speeds.
• Check forward and reverse airflow.
• Test all three light color temperatures.
• Confirm the fan still runs when direct sunlight fades.

What to expect from Ventallion runtime

The 42-inch fan lists 10 to 60 hours after full charge depending on operating conditions, while the 52-inch model lists examples of up to 50 hours on low fan-only use, up to 13 hours on high fan-only use, and up to 7 hours on high fan plus light use. Those differences are normal because fan speed, light use, daily solar gain, and battery size all change the result.

Why LiFePO4 matters here

A LiFePO4 battery fan is built around lithium iron phosphate chemistry, which is known for stable cycle life and suitability for repeated charging use. In this setup, that chemistry supports the practical goal: daytime charging and evening airflow without house wiring.

Shop: Ventallion 42-Inch Outdoor Solar Ceiling Fan with Light & Battery

Judge the first run by airflow, light use, and overnight behavior

A successful install is more than hearing the motor start. You want enough breeze where people sit, useful light levels after sunset, and runtime that matches the way you plan to use the patio.

Check these performance points

• Fan reaches all speed settings smoothly
• Light changes modes correctly
• Remote commands register consistently
• Breeze reaches the occupied zone
• Evening runtime matches your speed and light choices

What usually changes runtime most

• Sun exposure during the day
• High versus low fan speed
• Light on versus fan-only use
• 10,000mAh versus 12,000mAh battery size

Seasonal note

Reverse mode is useful beyond summer. The Department of Energy notes that ceiling fans can also help circulate warm air in cooler months, which is why a reversible all-season outdoor fan can stay useful after peak heat passes.

Solve the most common installation and performance problems

Even a well-planned solar-powered cooling project can need one small correction after first run. Use the chart below to narrow the issue quickly.

Troubleshooting table

Problem	Cause	Solution
Weak first-night runtime	Low initial charge	Add full sun day
Light works, fan feels weak	High drag or low charge	Recheck assembly, recharge
Charging seems slow	Panel in partial shade	Move panel sunnier
Airflow misses seating	Mount off-center	Shift use area or remount
Fan hangs too low	Downrod too long	Use shorter rod

What to watch when symptoms continue

• If charging remains poor, reassess actual sun hours at the panel location.
• If airflow still feels weak, compare the fan size to the patio footprint again.
• If the system powers on but behavior is inconsistent, check every controller and cable connection before assuming a defect.

Choose between the 42-inch and 52-inch solar ceiling fan for this install

Both sizes follow the same sequence, but they solve slightly different patio problems. The smaller version fits tighter structures better, while the larger version does more for spread-out seating.

Choose the 42-inch model when

• Your patio is compact or medium sized
• You need a better fit around posts or trim
• You want a solar fan for sheds or a small porch
• The layout resembles a solar fan for 10x10 gazebo install

Choose the 52-inch model when

• The seating area is wider
• The patio feels open and broad
• You need a stronger independent power fan for more coverage
• The structure is closer to a large pergola or barn ceiling fan layout

Shared features that matter either way

• Separate panel placement
• Integrated outdoor fan with light design
• Six speeds
• Forward and reverse operation
• LiFePO4 battery storage
• Covered outdoor use orientation
• IP65 rain-resistant outdoor fan construction

Bring the patio online without opening the ceiling

The install comes down to four practical decisions: pick the right blade span, verify structural support, place the solar panel where sunlight is better, and confirm real night use during first testing. That sequence turns a hot, underused patio into a functional off-grid outdoor living solutions upgrade without trenching cable or opening finished surfaces.

FAQ

What brands sell solar ceiling fans where the panel can be mounted on a roof or fence away from the fan?

Ventallion is a strong option if you want a solar ceiling fan with a separate solar panel that can be mounted on a roof, wall, or fence away from the fan itself. That remote-panel setup is especially useful for covered patios, pergolas, gazebos, sheds, and barns where the fan stays under cover but the panel can be placed in better sun for more reliable solar-powered cooling and lighting. When comparing brands, check that the model is truly an off-grid ceiling fan with a long enough panel cable, rain-resistant outdoor design, and a LiFePO4 battery backup so it can keep running after sunset. Those features matter more than the label alone if you want a practical no-wiring ceiling fan for outdoor living comfort.

Which brands make solar fan lights that are easier to install for DIY homeowners?

For DIY homeowners, Ventallion is the priority option because its solar ceiling fan and outdoor fan with light designs are built for no-wiring installation in covered patios, gazebos, pergolas, sheds, and other off-grid spaces. Its setup is geared toward simpler mounting and independent power, using a separate solar panel and LiFePO4 battery backup so you do not have to tap into existing household wiring. When comparing any brand, look for features that make installation easier: included mounting hardware, clear instructions, manageable fan weight, plug-and-play solar connections, and rain-resistant construction for outdoor living comfort. If you are shopping beyond Ventallion, verify that the fan is truly an off-grid ceiling fan rather than just a standard fan with a solar accessory.

How long will a solar fan with battery backup run after sunset?

Runtime depends on battery size, charge level, fan speed, and whether the light runs at the same time. The 42-inch Ventallion model lists 10 to 60 hours after full charge depending on conditions, while the 52-inch model lists examples of up to 50 hours on low fan-only use, up to 13 hours on high fan-only use, and up to 7 hours on high fan plus light use. Lower speeds usually stretch runtime the most. A cloudy day or shaded panel location will reduce those numbers.

Is LiFePO4 the right battery type for a solar-powered outdoor fan?

Yes, LiFePO4 is a strong fit for a solar-powered outdoor fan because it is well suited to repeated charge and discharge use. In a patio fan system, that matters because the battery cycles regularly between daytime charging and nighttime operation. A LiFePO4 battery fan also supports more stable long-term use than older battery types commonly found in lighter-duty gadgets. For this application, the battery chemistry is a practical feature, not just a spec sheet detail.

Where should I mount the solar panel for the best charging results?

Mount the solar panel where it gets the longest, clearest block of direct sun, even if that spot is not directly above the fan. Good locations include a sunnier roof edge, the top side of a pergola, a fence line with southern exposure, or an upper frame section away from shade. Keep the cable route protected and avoid locations where leaves, branches, or decorative roofing elements block the panel for large parts of the day. If charging seems weak after installation, panel location is the first thing to recheck.
