Solar Ceiling Fan for a Pergola Dining Area: Size, Light and Hanging Height

Quick Answer
Choose a solar ceiling fan based on the usable dining area, not only the pergola’s total footprint. A 42-inch fan suits 12×12 ft to 15×15 ft spaces, while a 52-inch fan suits 15×15 ft to 20×20 ft spaces. Center it near the dining table, maintain safe blade clearance, and place the solar panel where it receives reliable sunlight.

Introduction
A pergola dining area needs comfortable airflow, useful table lighting, and enough clearance for people and furniture. The right solar ceiling fan should fit the seating zone, align with a structurally secure mounting point, and provide balanced airflow without disturbing napkins or lightweight tableware. Here is how to choose the appropriate size, light setup, position, and hanging height.

Measure the Dining Zone Before Choosing a Fan

Unlike a general outdoor seating area, a dining space usually has a fixed focal point: the table. Guests remain seated around it for extended periods, so airflow and lighting must reach several positions evenly.

A poorly planned fan installation can create practical problems. A fan that is too small may leave the outer seats with little airflow. An oversized or low-hanging fan may produce concentrated drafts across the tabletop. If the fixture is positioned away from the table, its built-in light may not provide enough illumination for dining.

Before selecting a fan, consider four elements together:

  • The usable dining-zone dimensions
  • The table and chair layout
  • The available structural mounting point
  • The clearance around and below the blades

These factors provide a more reliable basis for choosing a fan than the pergola’s total square footage alone.

Measure the Dining Zone Before Choosing a Fan

Measure the Usable Dining Area

Start by measuring the interior length and width of the covered pergola. Then record the dimensions of the table and the area occupied when all chairs are pulled out.

You should also identify:

  • The center of the dining table
  • The location and spacing of structural beams
  • The distance from the proposed fan location to posts, walls, and screens
  • Any existing lights, heaters, speakers, or hanging decorations
  • The walking space around the chairs
  • The location of movable louvers or roof components

For example, a pergola may measure 16×20 ft, but the actual dining zone may occupy only one 12×14 ft section. In that case, the fan should primarily serve the 12×14 ft seating area rather than being selected and positioned solely according to the entire pergola.

Use the Seating Area as the Primary Reference

The fan should distribute air across the seats surrounding the table. It does not necessarily need to cover every corner of the pergola if the remaining space is used only as a walkway or plant area.

Shape also matters. A square dining zone is generally easier to cover with one centered fan. A long rectangular layout may have uneven airflow at both ends, even if its total area appears to fall within a fan’s general coverage range.

When measuring, treat the table and occupied chair positions as a single functional zone. This helps determine whether one centered fan can serve the space or whether a longer pergola requires two separate airflow zones.

42-Inch or 52-Inch Solar Ceiling Fan for a Pergola Dining Area?

Ventallion’s current sizing guidance places the two fan models within the following space ranges:

Pergola dining-area size Suggested fan size Typical use
12×12 ft to under 15×15 ft 42-inch Compact dining areas and many four- to six-seat layouts
15×15 ft 42-inch or 52-inch Choose according to layout, desired airflow, and blade clearance
Over 15×15 ft to 20×20 ft 52-inch Larger tables and wider seating arrangements
Over 20×20 ft Evaluate two fans Long, divided, or multi-purpose pergola layouts

These ranges are a starting point rather than a substitute for checking the mounting structure and blade clearance.

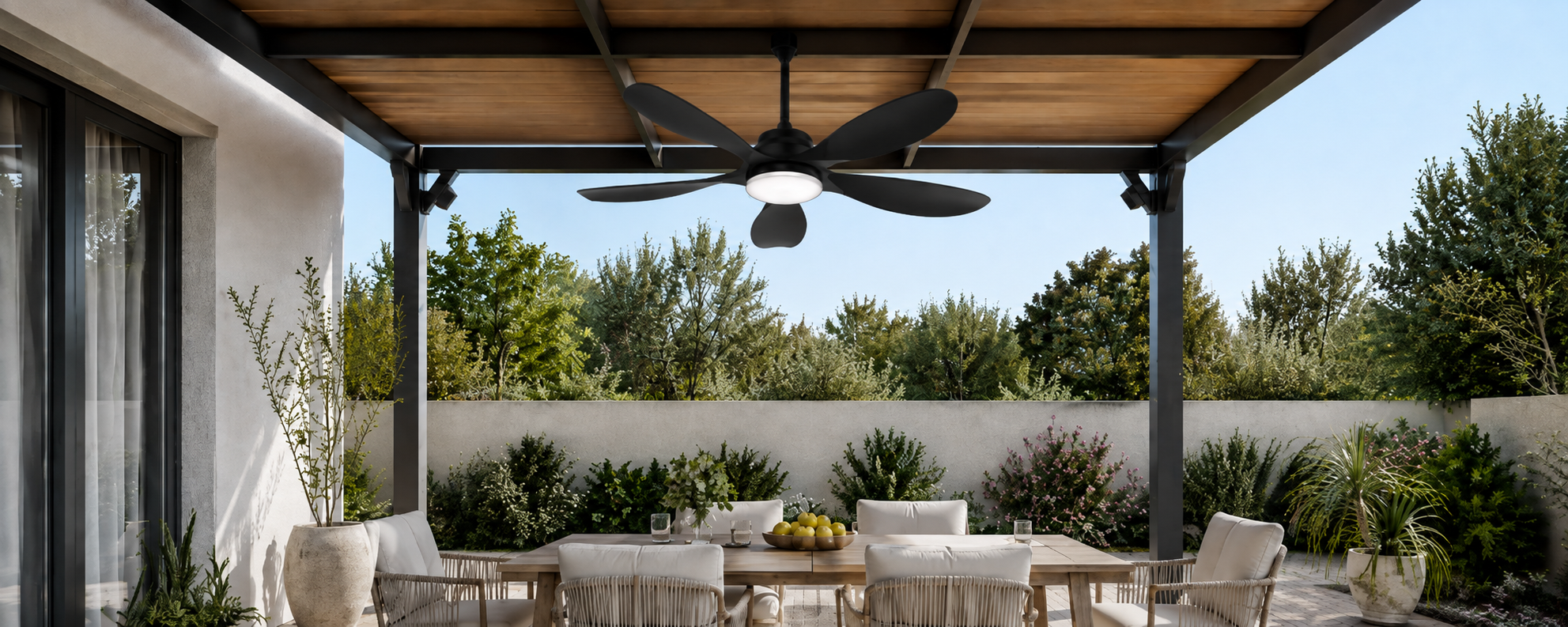

When a 42-Inch Fan Is the Better Fit

The 42-inch solar ceiling fan with light and battery is designed for covered spaces from 12×12 ft to 15×15 ft.

It is generally the more suitable choice when:

  • The dining zone is compact
  • The table seats approximately four to six people
  • Posts or closely spaced beams limit blade clearance
  • The fan will be centered over a defined table area
  • The pergola has a lower or more compact overhead structure

A smaller fan can also offer more positioning flexibility when the mounting point is close to a beam or other fixed structure. However, choosing a smaller model should never be used to compensate for inadequate clearance or an unsuitable mounting point.

When a 52-Inch Fan Makes More Sense

The 52-inch outdoor solar ceiling fan is intended for covered spaces from 15×15 ft to 20×20 ft.

Consider the larger model when:

  • The dining area is wider than 15×15 ft
  • The table accommodates six to eight or more people
  • Chairs extend across a broad seating zone
  • The mounting position provides sufficient blade clearance
  • You want airflow distributed over a larger occupied area

At exactly 15×15 ft, both models fall within their stated ranges. The better choice depends on the pergola’s shape, mounting height, furniture arrangement, available clearance, and preferred airflow intensity.

Do not automatically choose the 52-inch model simply because it is larger. If surrounding posts, beams, or fixtures restrict the blades, a larger diameter may create an unsuitable installation even when the floor dimensions appear sufficient.

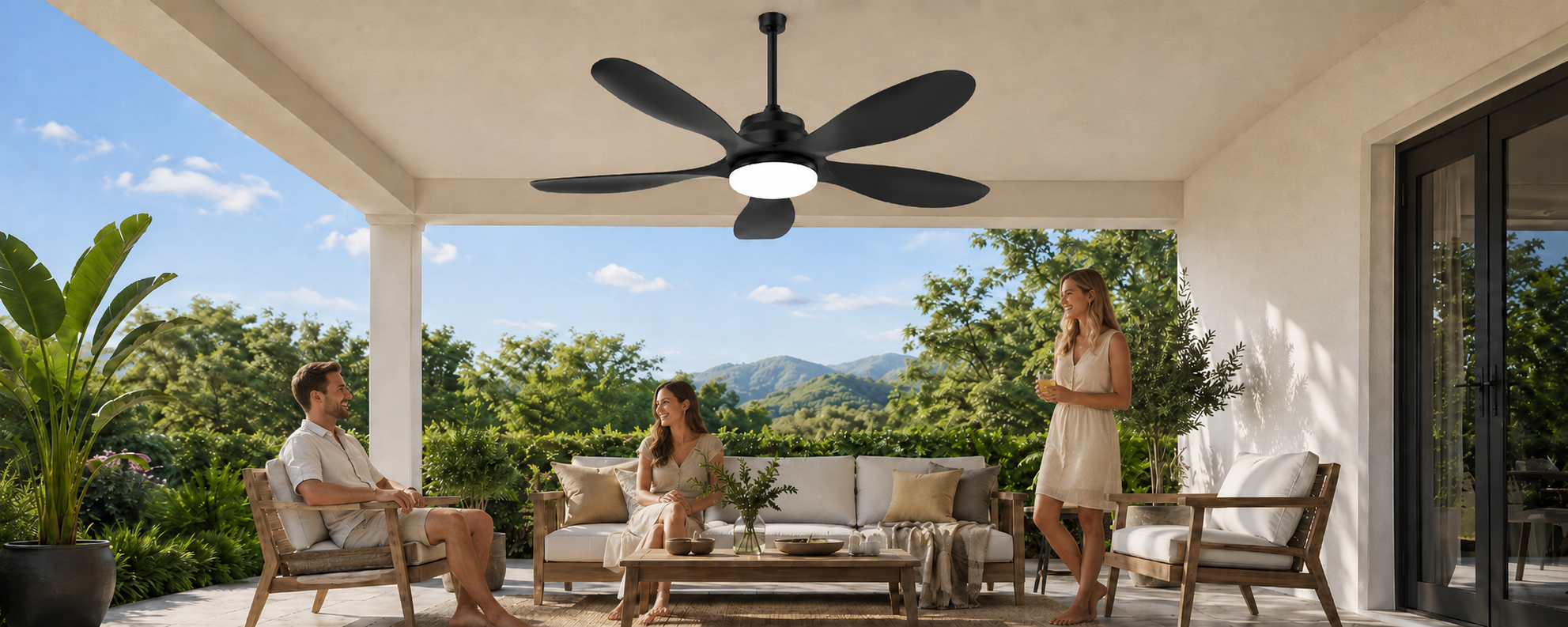

Where Should the Fan Be Positioned Above the Dining Table?

Centered Over the Table

In many pergola dining areas, positioning the fan near the center of the table provides the most balanced result. This arrangement can distribute airflow more evenly among the seats and direct the built-in light toward the tabletop.

Before centering the fixture visually, confirm that the corresponding overhead location has a structurally suitable support point. A ceiling fan creates a moving load and should not be attached only to a decorative ceiling panel, thin roof sheet, or non-load-bearing trim.

The final mounting position must prioritize structural support and safe clearance over perfect visual alignment.

When an Off-Center Position May Be Necessary

A fan may need to be installed slightly away from the table center when:

  • No suitable support beam is located above the center
  • An existing pendant light occupies the preferred position
  • A louver mechanism moves through the central area
  • A heater or another overhead fixture creates a conflict
  • The pergola has an asymmetrical beam layout
  • The required blade clearance cannot be achieved centrally

A modest offset can still work if the fan remains close enough to distribute airflow across the occupied seats. If the only secure mounting point is far from the dining zone, reconsider the layout or consult a qualified installer instead of mounting the fan to an unsuitable surface.

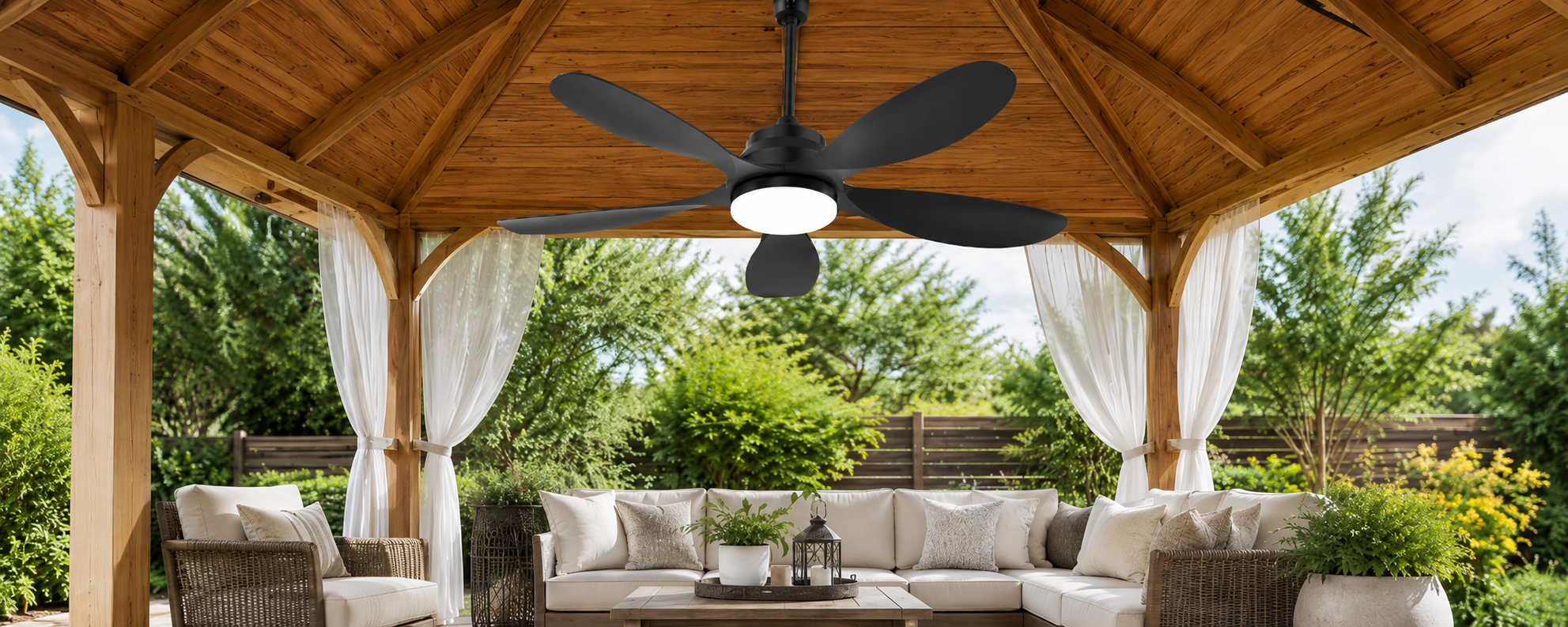

How High Should a Ceiling Fan Hang Above a Pergola Dining Area?

Prioritize Blade Clearance and Safety

The fan must be high enough to keep the blades safely away from people, furniture, structural elements, and other fixtures. Check the distance from the floor to the blades—not only to the bottom of the light.

Also check clearance between the blades and:

  • Pergola beams and posts
  • Fixed walls or privacy screens
  • Roof components
  • Hanging lights and decorations
  • Outdoor heaters
  • Cabinets or tall storage units

The table itself does not make a low fan installation safe. People may move the table, stand on chairs while decorating, or bring taller furniture into the pergola later.

Follow the fan’s installation instructions and applicable local building and electrical requirements. If the pergola roof is low or the available overhead space is restricted, confirm compatibility before purchasing.

Avoid Hanging the Fan Too High

A fan mounted unnecessarily close to a high pergola roof may deliver less noticeable airflow at table level. The light will also be farther from the dining surface, which can reduce its usefulness as task lighting.

An excessively high position may cause users to operate the fan at higher speeds more often. That does not necessarily mean a larger fan is required; the mounting height and open sides of the pergola may be affecting how the airflow feels.

Choose an appropriate downrod configuration according to the product instructions and the available vertical space.

Avoid Hanging the Fan Too Low

A fan mounted too low can create safety concerns and make the airflow feel overly concentrated. Strong air directed close to the tabletop may disturb paper napkins, disposable plates, menus, or lightweight decorations.

A low fixture may also interfere visually with the dining area or conflict with people moving around the table. Do not select a downrod based only on appearance. Confirm the resulting blade height and all required clearances before installation.

Is an Integrated Light Enough for Outdoor Dining?

A solar ceiling fan with an integrated light can reduce the need to install a separate powered fixture over the table. Whether it provides all the lighting you need depends on the size and arrangement of the pergola.

When the Fan Light May Be Sufficient

The built-in light may be enough when:

  • The table is positioned directly below or close to the fan
  • The dining area is small or medium-sized
  • The pergola already has low-level ambient lighting
  • You primarily need illumination for casual evening meals
  • Pathways and steps have separate safety lighting

Ventallion solar ceiling fans provide three light-color options, allowing users to adjust the tone for different activities.

When Additional Lighting May Still Be Needed

Consider supplementary lighting if:

  • The pergola contains a long dining table
  • The fan is mounted high above the table
  • The roof and furniture use dark finishes
  • The space includes a separate grill or food-preparation area
  • The pergola has steps or walkways beyond the table
  • You need brighter light for serving or detailed tasks

The integrated fan light should not be expected to illuminate every edge of a large pergola. Wall lights, low-voltage path lights, or other outdoor-rated fixtures can provide additional coverage without competing with the fan above the table.

Choose the Right Light Color for Dining

The three light colors can support different uses:

  • Warm light creates a softer atmosphere for relaxed dinners and entertaining.
  • Neutral light provides balanced visibility for everyday meals.
  • Cool light can be useful when clearer, more functional illumination is preferred.

The best setting depends on surrounding lighting, furniture colors, and personal preference. If other fixtures are already installed, using similar color temperatures can make the dining area look more visually consistent.

How to Prevent the Fan From Blowing Across the Table Too Strongly

More airflow is not always better during a meal. The goal is to keep guests comfortable without creating a strong downward draft across the table.

Start at a lower fan speed and increase it gradually according to the temperature and number of people seated. Ventallion models provide six speeds, making it easier to adjust airflow for different dining conditions.

Additional steps include:

  • Positioning the fan to serve the whole seating zone rather than one chair
  • Using lower speeds when paper products or lightweight tableware are present
  • Adjusting the speed as outdoor temperature changes
  • Using the reversible function according to the season and desired air movement
  • Avoiding an oversized fan when the actual dining zone is compact
  • Keeping the table reasonably centered beneath the airflow area

Open-sided pergolas are also affected by natural wind. A comfortable fan setting on a still evening may feel excessive when a breeze is already passing through the structure.

Solar Panel Placement for a Shaded Dining Pergola

The fan can be mounted in a covered, shaded dining area while the solar panel is positioned where it receives better sunlight. This is particularly useful for pergolas with solid roofs, shade canopies, or surrounding trees.

When planning the panel location:

  • Look for a spot with reliable direct sunlight
  • Check for shade from trees, rooflines, and nearby buildings
  • Confirm the complete cable route before installing either component
  • Keep the cable away from movable louvers and sharp edges
  • Avoid routing it through areas where chairs or people may catch it
  • Use the supplied 5 m cable as the planning limit unless an approved solution is specified

Do not assume that the sunniest location at midday will remain unshaded throughout the useful charging period. Observe how shadows move across the pergola roof and nearby mounting surfaces.

The solar panel carries an IP65 rating, but that does not automatically mean every fan component should be installed in a fully exposed location. The fan is intended for covered outdoor use, so the installation environment should remain consistent with the product instructions.

One Fan or Two for a Long Pergola Dining Layout?

A square dining area within a single fan’s stated range can often begin with one fan positioned near the center. A long pergola may require a different approach.

For example, one end may contain the dining table while the other contains a lounge or conversation area. Even if the total square footage does not appear extreme, a single centrally mounted fan may not distribute airflow evenly across both zones.

Consider evaluating two fans when:

  • The pergola is longer than it is wide
  • The dining and lounge areas are clearly separated
  • A structural beam divides the ceiling into two mounting zones
  • One fan cannot be positioned near both occupied areas
  • The pergola exceeds 20×20 ft
  • People at opposite ends need consistent airflow

For a more detailed decision process, see the sizing guide for choosing one or two solar ceiling fans in a large pergola.

Two smaller fans may sometimes distribute airflow more evenly than one fan located between separate activity zones. However, each fan still needs an appropriate support point, adequate clearance, a suitable solar setup, and a safe cable route.

Pre-Purchase Checklist for a Pergola Dining Area

Before ordering from the outdoor solar ceiling fan collection, confirm the following:

  • Measure the pergola’s usable interior length and width.
  • Record the dining table dimensions.
  • Include the space occupied by chairs when pulled out.
  • Identify the table center and available structural beams.
  • Confirm that the mounting point can support a ceiling fan.
  • Check blade clearance from posts, walls, beams, and fixtures.
  • Measure the expected floor-to-blade distance.
  • Choose 42 inches for a 12×12 ft to 15×15 ft space or 52 inches for a 15×15 ft to 20×20 ft space.
  • Treat 15×15 ft as an overlap point requiring a layout-based decision.
  • Determine whether the built-in light will cover the table adequately.
  • Identify a solar-panel location with dependable sunlight.
  • Plan the entire route for the 5 m connection cable.
  • Decide whether one fan can cover the occupied zone evenly.
  • Evaluate two fans for long, divided, or larger-than-20×20 ft layouts.
  • Confirm that the fan will remain in a covered outdoor location.
  • Review the installation instructions and applicable local requirements.

FAQs

What size solar ceiling fan is best for a 12×12 pergola dining area?

A 42-inch solar ceiling fan is the recommended starting point for a 12×12 ft pergola dining area. The table layout, mounting height, structural support, and blade clearance should still be checked before installation.

Is a 52-inch fan too large for a pergola dining table?

Not necessarily. A 52-inch fan can suit a dining area from 15×15 ft to 20×20 ft when there is sufficient blade clearance. Do not choose the size from the table dimensions alone; consider the complete occupied seating zone and surrounding structure.

Should a pergola ceiling fan be centered over the dining table?

Centering the fan over or near the table usually provides balanced airflow and better tabletop lighting. However, a structurally secure mounting point and safe blade clearance take priority over perfect visual centering.

Can the solar panel be installed away from the shaded dining area?

Yes. The fan can remain under the covered pergola while the solar panel is placed in a sunnier location. Confirm that the chosen location is within the supplied cable’s reach and that the route is protected from moving components, sharp edges, and foot traffic.

Is one fan enough for a long pergola dining area?

It depends on the pergola’s shape and functional layout. One fan may be sufficient when the occupied area is compact and within the model’s coverage range. A long pergola with separate dining and lounge zones may benefit from two independently positioned fans.

Can the built-in fan light replace separate pergola lighting?

It may be sufficient for a small or medium dining table, particularly when the fan is centered above it. Larger pergolas, long tables, walkways, steps, and food-preparation areas may still require supplementary outdoor lighting.

Can a solar ceiling fan run during an evening meal?

Yes. A battery-backed solar ceiling fan stores energy for use when sunlight is unavailable, allowing the fan and light to operate after sunset. Actual runtime depends on the battery charge, selected fan speed, lighting use, weather, and recent solar-charging conditions.
