Solar Ceiling Fan for a Louvered Pergola: Mounting, Clearance and Panel Placement

Quick Answer
A solar ceiling fan can work well in a louvered pergola when it is secured to a fixed, load-bearing beam—not to the moving louvers. Before buying, confirm structural support, check clearance with the louvers fully open and closed, and choose a sunny, stationary location for the solar panel that allows safe cable routing.

Introduction
A louvered pergola creates a comfortable, adjustable outdoor space, but its moving roof system makes ceiling-fan installation more complex than in a conventional covered patio. This guide explains how to evaluate the mounting point, measure operating clearance, select the appropriate fan size, and position the solar panel before purchasing a solar ceiling fan.

Can You Install a Solar Ceiling Fan in a Louvered Pergola?

In many cases, yes—but the answer depends on the construction of the pergola rather than the louvers alone.

A suitable installation requires a fixed structural member capable of supporting the fan and the forces created while it operates. The mounting point must also remain stationary when the louvers open, close, or tilt.

Never assume that a decorative crosspiece or thin aluminum section can support a ceiling fan simply because it appears sturdy. Before drilling or attaching a mounting bracket, check the pergola manufacturer’s installation instructions or ask the manufacturer whether the structure includes an approved fan beam.

A louvered pergola is generally more suitable for a solar ceiling fan when:

  • It has a fixed, load-bearing crossbeam or approved fan-mounting beam.
  • The mounting point does not move with the roof louvers.
  • The louvers can fully open and close without touching the fan or downrod.
  • The fan blades have sufficient horizontal clearance from beams, posts and accessories.
  • The installation height provides safe vertical clearance above the occupied area.
  • A stationary location with adequate sunlight is available for the solar panel.
  • The connecting cable can follow a protected route along fixed structural components.

Installation may be unsuitable when:

  • The fan can only be attached to a moving louver.
  • No structural member has been approved to support a ceiling fan.
  • The fan would interfere with the louver motor, linkages or drainage system.
  • The pergola is too low to maintain safe clearance below the fan.
  • The installation requires drilling that could compromise drainage or void the pergola warranty.
  • The intended location exposes the fan or its electrical components beyond their specified installation conditions.

Because pergola designs vary considerably, a successful installation in one structure does not guarantee compatibility with another. Confirm both the fan requirements and the pergola manufacturer’s limitations before purchasing.

Where Should the Fan Be Mounted?

The fan should be attached to a fixed structural beam, a manufacturer-approved fan beam or a properly engineered mounting plate. It should never be attached directly to an adjustable roof louver.

Moving louvers are designed to rotate and control sunlight, ventilation and rain protection. Adding the weight and operating load of a fan could interfere with their movement, stress the mechanism or obstruct the roof’s drainage path.

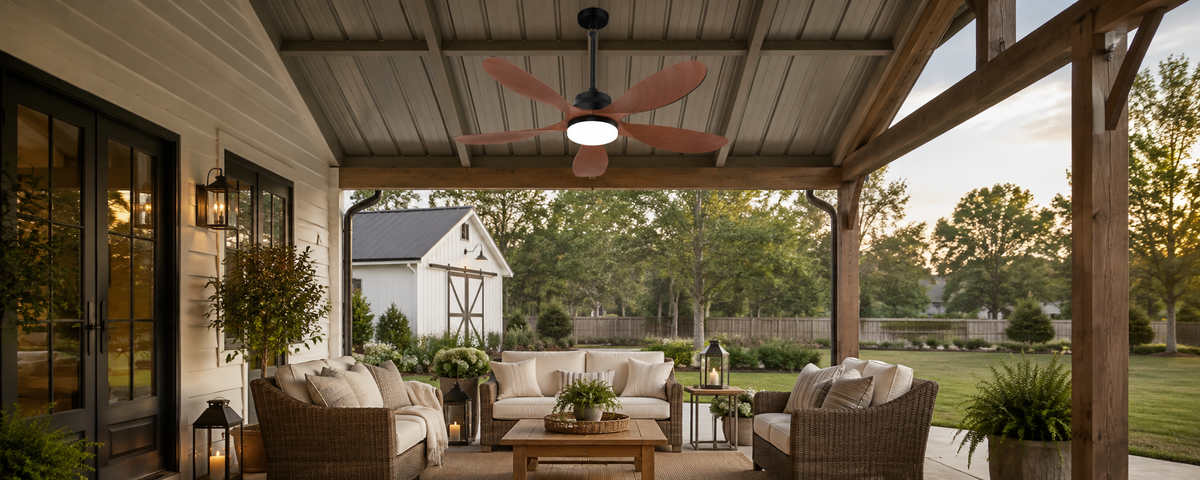

Fixed Structural Beam

A fixed crossbeam is usually the first location to evaluate. It remains stationary while the louvers move and may offer a direct route for securing the mounting bracket and organizing the cable.

However, not every visible beam is load-bearing. Some aluminum pergola components are hollow, decorative or designed primarily to carry the louver system. Ask the pergola manufacturer whether the proposed beam can support a rotating ceiling fan and whether an internal reinforcement kit is required.

Manufacturer-Approved Fan Beam

Some louvered pergola systems offer a dedicated fan beam or accessory mounting rail. This is often the most straightforward option because it is designed to integrate with the existing structure.

Before ordering a fan, verify:

  • The beam’s maximum supported load.
  • The permitted mounting locations.
  • Whether a special bracket or reinforcement plate is required.
  • Whether drilling is allowed.
  • How the installation affects the pergola warranty.
  • Whether the fan beam leaves enough space for the selected blade diameter.

Center Placement or Activity-Zone Placement

A fan does not always have to be installed in the geometric center of the pergola. The best position depends on where people spend the most time.

Fan position Best suited to What to check
Center of the pergola Symmetrical seating layouts and single activity areas Whether a fixed structural beam crosses the center
Above a seating zone Sectional sofas, lounge chairs and conversation areas Blade clearance from posts, lights and tall furniture
Above a dining zone Outdoor tables used during warm afternoons or evenings Hanging height and alignment with the table
Two-zone arrangement Large, wide or elongated pergolas Two approved mounting points and adequate spacing between fans

Position the fan according to the pergola’s usable area—not only its outside dimensions. A kitchen counter, support post, privacy wall or separate dining section can change the area that actually needs air circulation.

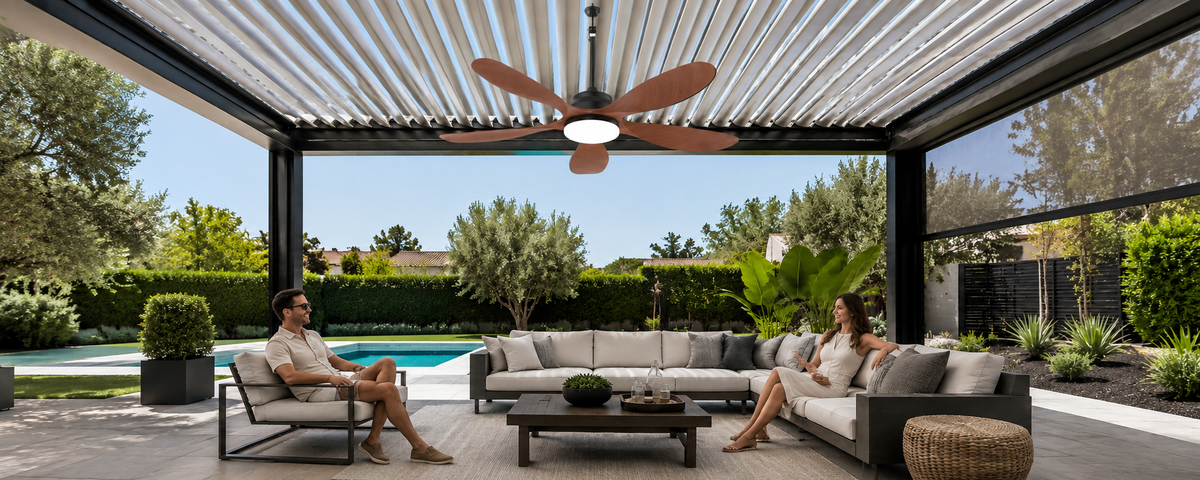

How Much Clearance Does a Pergola Ceiling Fan Need?

A louvered pergola requires both static and dynamic clearance.

Static clearance is the space between the stationary fan and fixed objects such as beams, posts, lights and walls. Dynamic clearance accounts for parts that move, especially the roof louvers.

The exact clearance requirements should come from the fan installation manual, the pergola manufacturer and applicable local rules. Do not rely on a generic measurement without checking the selected products.

Check Four Clearance Zones

1. Blade-to-Structure Clearance
Mark the full blade sweep of the fan and check its distance from:

  • Fixed crossbeams
  • Pergola posts
  • Side walls
  • Hanging lights
  • Heaters
  • Curtains or screens
  • Tall cabinets or outdoor kitchen equipment

The fan’s listed size describes its overall blade span, not the amount of space required for installation. Additional clearance is necessary around the rotating blades.

2. Downrod-to-Louver Clearance
The downrod and fan canopy must remain clear of the louvers through their complete range of movement. A louver may move closer to the downrod when tilted than it appears while lying flat.

Check the system with the louvers:

  • Fully closed
  • Partially tilted
  • Fully open

If the pergola uses automated louvers, also identify the position of motors, connecting arms and other moving hardware.

3. Blade-to-Floor Clearance
Calculate the installed height using the complete fan assembly, including:

  • Mounting bracket
  • Canopy
  • Downrod
  • Motor housing
  • Light assembly, if fitted

A shorter downrod can help with a lower pergola, but it does not eliminate the need for adequate air space around the blades or safe clearance below the fixture. Use only compatible parts and approved downrod configurations.

4. Clearance From Furniture and Accessories
Consider how the space may change after installation. A future pendant light, tall plant, patio heater or privacy screen could enter the blade sweep even if the current layout is clear.

The safest planning approach is to keep the full operating area visible and unobstructed rather than positioning the fan tightly between accessories.

Measure With the Louvers Open and Closed

Use this process before choosing the fan size:

  1. Identify a fixed, approved mounting point.
  2. Measure from that point to the floor.
  3. Find the lowest position reached by the moving louvers or their hardware.
  4. Add the installed depth of the bracket, downrod, fan body and light.
  5. Mark the complete blade diameter around the proposed center point.
  6. Operate the louvers through their full range.
  7. Check for interference with beams, posts, lights and furniture.
  8. Compare the measurements with the fan instructions and pergola requirements.

Do not order based only on the pergola’s advertised outside dimensions. Internal beams, gutters and the louver mechanism can reduce the usable installation area.

Choosing a 42-Inch or 52-Inch Fan

Fan size should be based primarily on the usable area beneath the pergola and the available blade clearance.

Ventallion’s current space recommendations are:

Feature Why it matters in a 12×12 pergola What to verify
42-inch fan size Matches the stated 12×12–15×15 ft space range Official model specifications
Battery storage Allows energy to be stored for later use Charging and operating conditions
Integrated light Adds illumination without a separate ceiling fixture Brightness and independent controls
Remote control Makes fan and light adjustments more convenient Available functions and operating instructions
Outdoor protection Helps the system withstand its approved outdoor environment Rating and placement requirements for each component
Separate solar panel Allows the fan to remain in shade while the panel receives sun Cable length and approved mounting locations

The 42-inch outdoor solar ceiling fan is recommended for spaces from 12 × 12 ft to 15 × 15 ft. Its more compact blade span can also make it easier to fit between structural elements in a smaller louvered pergola.

The 52-inch outdoor solar ceiling fan is recommended for spaces from 15 × 15 ft to 20 × 20 ft. It suits a larger usable area, but the wider blade sweep requires more careful measurement around beams and moving louvers.

At exactly 15 × 15 ft, both sizes are within their recommended ranges. The final choice should consider:

  • The dimensions of the actual seating or dining zone.
  • The location of fixed structural beams.
  • Horizontal blade clearance.
  • Pergola height and compatible downrod configuration.
  • Whether the space is open or divided into separate zones.
  • The visual scale of the fan relative to the structure.

For a detailed size comparison, review the 42-inch vs. 52-inch solar ceiling fan guide.

Do not assume that the larger model is automatically the right choice. A 52-inch fan may fit the overall pergola dimensions while conflicting with an internal beam, light fixture or louver mechanism.

Where Should the Solar Panel Be Installed?

The fan and solar panel serve different purposes and do not need to occupy the same location. The fan belongs beneath the pergola where air movement is needed, while the panel should be placed in a stable location that receives useful sunlight.

This separation is especially valuable in a louvered pergola. The fan can remain beneath the shaded structure while the solar panel is positioned outside the shade.

Avoid Mounting the Panel on Moving Louvers

Adjustable louvers are usually a poor mounting surface for a solar panel because their angle changes throughout the day. A panel attached to a moving louver could:

  • Interfere with normal roof operation.
  • Place additional load on the louver mechanism.
  • Create an unstable charging angle.
  • Cause the cable to bend, twist or become trapped.
  • Obstruct drainage when the roof is closed.
  • Require drilling that affects the pergola warranty.

A stationary mounting surface is generally more predictable and easier to cable safely.

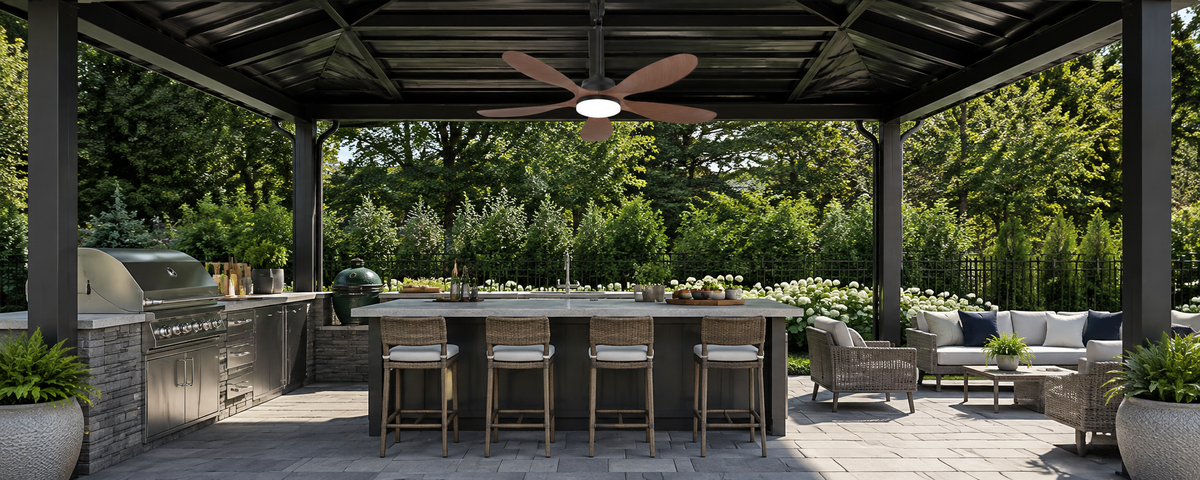

Possible Solar Panel Locations

Panel location Potential advantage What to confirm
Fixed pergola frame Shorter route to the fan Sun exposure, approved mounting method and structural suitability
Adjacent roof May receive longer periods of direct sunlight Roof attachment, weather sealing and available cable length
Sun-facing wall Keeps the panel separate from moving louvers Orientation, seasonal shade and mounting angle
Independent post or bracket Allows flexible placement beyond the pergola’s shadow Stability, cable protection and appearance
Fixed upper surface of the structure May provide a clear view of the sun Whether the surface remains stationary and can accept the mount

Observe the intended location at different times of day. A spot that receives morning sunlight may be shaded by the house, trees or the pergola itself later in the day.

Also consider seasonal changes. The sun’s position and nearby tree cover can alter panel exposure between summer and winter.

Before finalizing the location, verify:

  • The included cable can reach the fan without being stretched.
  • The panel will remain stationary.
  • The cable route will not cross a moving louver.
  • Connectors can be kept protected and supported.
  • No unapproved cable modification is necessary.
  • The mounting method will not disrupt gutters or drainage channels.

How to Route the Cable Around Moving Louvers

Cable routing should be planned at the same time as the fan and solar panel positions. A good panel location is not practical if the cable has to cross the moving roof mechanism or hang unsupported through the occupied area.

Whenever possible, route the cable along fixed beams and posts.

A Practical Cable Path

A typical layout may follow this sequence:

Solar panel → fixed outer frame → stationary crossbeam or post → approved fan mounting point

The precise route depends on the pergola design, but every section should remain clear of moving components.

Cable-Routing Checklist

  • Follow fixed structural components rather than adjustable louvers.
  • Keep the cable away from hinges, gears, motors and connecting arms.
  • Avoid drainage channels and areas where water may collect.
  • Protect the cable where it passes near a metal edge.
  • Prevent loose sections from hanging into the occupied area.
  • Support the cable so its weight does not pull on a connector.
  • Leave only the appropriate amount of slack recommended for installation.
  • Do not place excess cable where the louvers can pinch it.
  • Do not cut, splice or extend the supplied cable unless the manufacturer expressly allows it.
  • Check the entire route while operating the louvers from fully closed to fully open.

If the route passes through or around a pergola frame, use installation methods appropriate for the structure and outdoor environment. The cable should not depend on adhesive alone in a location exposed to heat, moisture or repeated movement.

Pre-Purchase Checklist for a Louvered Pergola

Complete this checklist before ordering a solar-powered ceiling fan:

  • The pergola manufacturer permits ceiling-fan installation.
  • A fixed structural beam or approved mounting component is available.
  • The mounting point can support the complete fan assembly during operation.
  • The fan will not be attached to an adjustable louver.
  • The louvers can fully open and close without touching the fan.
  • The blade sweep clears beams, posts, lights and accessories.
  • The installed height meets the relevant fan and local requirements.
  • The usable area has been measured separately from the outside pergola dimensions.
  • The 42-inch or 52-inch model has been selected using the confirmed space range.
  • A stationary solar panel location receives adequate sunlight.
  • The supplied cable can reach the chosen panel location.
  • The cable can follow fixed parts of the structure.
  • The route avoids motors, hinges, drainage channels and sharp edges.
  • Drilling will not compromise drainage or the pergola warranty.
  • The intended exposure is consistent with the installation requirements for every component.
  • The final plan has been checked against both manufacturers’ instructions.

If several items remain uncertain, resolve them before purchasing. Changing the mounting location after installation may affect blade clearance, panel exposure and cable reach simultaneously.

Common Installation Mistakes to Avoid

Choosing the Fan Before Locating a Structural Beam

A fan may be correctly sized for the floor area but impossible to place safely in the intended position. Find the approved mounting point before choosing between the two blade sizes.

Measuring Only With the Louvers Closed

The edge or operating hardware of an open louver may move closer to the downrod. Test every roof position instead of relying on a single measurement.

Mounting the Panel Where the Fan Is Located

The most convenient location is not necessarily the sunniest one. A shaded panel beneath the pergola cannot take advantage of the fact that the fan and panel can be positioned separately.

Treating the Outside Dimensions as the Usable Area

A pergola advertised as 15 × 15 ft may provide a smaller unobstructed area inside its posts and beams. Measure the zone beneath the structure before applying the fan-size guidance.

Ignoring the Cable Route Until the End

The selected panel location may become unusable if the cable cannot reach it or must pass through the louver mechanism. Plan the entire route before mounting either component.

Assuming Every Aluminum Beam Is Load-Bearing

Appearance is not evidence of structural capacity. A hollow or decorative section may need internal reinforcement or may not permit fan installation at all.

FAQ

Can a Ceiling Fan Be Mounted Directly to Louvered Pergola Slats?

No. A ceiling fan should not be mounted to moving louver slats. It needs a fixed, load-bearing structural component or an approved fan beam. Confirm the correct mounting point with the pergola manufacturer.

Will a Ceiling Fan Interfere With the Louvers When They Open?

It can if the downrod, canopy or blades enter the louvers’ operating path. Measure with the roof fully closed, partially tilted and fully open before installation.

Can the Solar Panel Be Installed Away From the Pergola?

Yes, provided the chosen location is stable, receives suitable sunlight and can be reached safely using the permitted cable configuration. This allows the fan to remain under the pergola while the panel is positioned outside its shade.

Should I Choose a 42-Inch or 52-Inch Fan?

The 42-inch model is recommended for 12 × 12 ft to 15 × 15 ft spaces. The 52-inch model is recommended for 15 × 15 ft to 20 × 20 ft spaces. At 15 × 15 ft, either may be appropriate depending on the layout and available clearance.

Can I Use One Fan in a Pergola Larger Than 20 × 20 Ft?

Do not assume that one 52-inch fan will cover an area beyond its recommended 15 × 15 ft to 20 × 20 ft range. A large, wide or elongated pergola may benefit from two separate fan zones, subject to available mounting points and spacing.

Can the Cable Run Along an Aluminum Pergola Frame?

It may be routed along fixed frame components if it is secured, protected from sharp edges and kept away from the louver mechanism, motors and drainage paths. Follow the cable and pergola manufacturers’ installation requirements.

Can I Drill Into the Pergola Frame to Mount the Fan or Panel?

Only if the pergola manufacturer permits it. Drilling in the wrong location may weaken a component, affect drainage or alter warranty coverage. Ask for approved mounting locations and methods before making holes.

Do I Need an Electrician to Install a Solar Ceiling Fan?

That depends on the product instructions, the installation method and local requirements. Even when no connection to household electricity is needed, structural mounting and outdoor cable routing still need to be completed correctly. Consult a qualified installer when the mounting capacity, local rules or installation conditions are uncertain.

Recommended Outdoor Solar Ceiling Fan Guides

View more
