Solar Ceiling Fan for a Metal-Roof Pergola: What to Check Before Buying

Quick Answer
A solar ceiling fan can be a practical choice for a metal-roof pergola, provided the fan is secured to a verified structural beam rather than a thin roofing panel. Before buying, check the pergola’s usable area, mounting structure, hanging clearance, solar-panel location, cable route, and exposure to weather.

Introduction
Metal-roof pergolas provide useful shade but can complicate electrical wiring, fan mounting, and solar charging. This guide explains what to check before choosing a 42-inch or 52-inch solar ceiling fan for a metal-roof pergola.

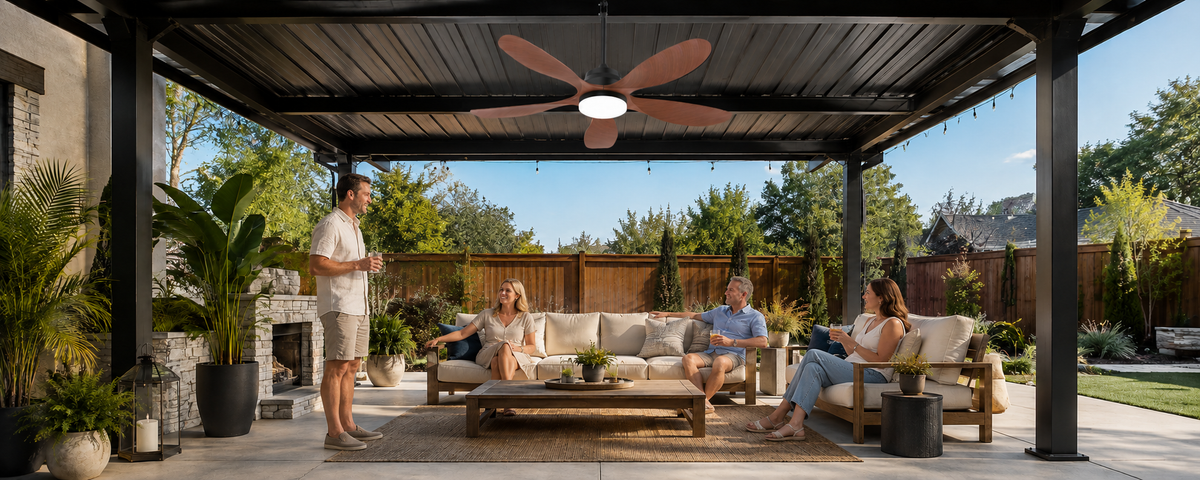

1. Check the Pergola Structure Before Choosing a Fan

The metal roof itself should not automatically be treated as a suitable fan-mounting surface. A ceiling fan creates a continuous rotating load, so the mounting point must support both the fan’s weight and the movement generated during operation.

Mount the Fan to a Structural Beam, Not the Roof Sheet

Thin metal roofing panels are primarily designed to provide coverage from sun and rain. They may not have the strength or rigidity required to support a rotating ceiling fan.

The fan should instead be attached to a suitable structural component, such as:

  • A main support beam
  • A reinforced crossbeam
  • A manufacturer-approved mounting point
  • An added fan-rated support installed by a qualified professional

Before purchasing a ceiling fan for a metal pergola, identify exactly where the mounting bracket will be secured. If the pergola manufacturer does not specify whether the frame can support a ceiling fan, ask the manufacturer or a qualified installer to evaluate it.

Do not drill into the roofing sheet and assume that the panel alone will safely support the fan.

Identify the Frame Material

Metal-roof pergolas can have different supporting structures:

  • Steel frames
  • Aluminum frames
  • Wood frames covered by metal roofing
  • Mixed-material structures

Each material may require different brackets, fasteners, or reinforcement. Steel can provide a strong mounting surface when properly designed, while some hollow aluminum members may require additional reinforcement. A wood beam may use a different mounting method than either type of metal frame.

Because structural designs vary, mounting hardware should be selected for the specific pergola rather than chosen solely according to the roof material.

Check for Movement and Vibration

A lightweight metal roof can amplify vibration or rattling if the fan is attached to an unstable part of the structure. Before installation, check that:

  • The selected beam does not flex noticeably
  • The mounting bracket can sit firmly against the supporting surface
  • The downrod can remain vertical
  • The fan will not contact roofing panels, beams, or trim
  • Loose roof panels or fasteners are corrected before the fan is installed

Correct blade balancing and secure hardware also help reduce unwanted vibration after installation.

2. Choose the Correct Fan Size for Your Metal Pergola

Fan size should be based on the area where people actually need airflow—not only the outside dimensions of the roof.

Ventallion’s current recommended coverage ranges are:

Usable pergola area Recommended fan size Buying guidance
12 × 12 ft to less than 15 × 15 ft 42 inches A practical fit for a compact seating or dining area
15 × 15 ft 42 or 52 inches Both sizes apply; choose according to layout, clearance, and preferred airflow
More than 15 × 15 ft to 20 × 20 ft 52 inches Provides broader airflow for a larger occupied area
More than 20 × 20 ft Additional planning required One 52-inch fan should not automatically be assumed to cover the entire space

The 42-inch outdoor solar ceiling fan with light and battery is intended for spaces from 12 × 12 ft to 15 × 15 ft.

The 52-inch outdoor solar ceiling fan with light and battery is intended for spaces from 15 × 15 ft to 20 × 20 ft.

Measure the Usable Area

A 16 × 20 ft pergola does not necessarily require airflow across every square foot. The occupied area may consist of a smaller dining table or lounge arrangement located under one section of the roof.

When measuring, consider:

  • The position of the dining table or seating
  • Where people spend the most time
  • The location of support posts and crossbeams
  • Outdoor kitchen or grill areas
  • Doors, lighting fixtures, and heaters
  • Whether the fan can be centered over the main activity zone

For example, a 42-inch fan may suit a 12 × 14 ft seating zone within a larger pergola. A 52-inch model may be more appropriate when the primary occupied area extends beyond 15 × 15 ft.

When Might a Pergola Need Two Fans?

A large pergola may need more than one fan when:

  • The total area exceeds 20 × 20 ft
  • The layout is long and narrow
  • Dining and lounge areas are separated
  • A central beam or partition divides the space
  • One centered mounting position cannot serve both activity zones

Fan quantity should be planned around the shape and use of the pergola. Avoid assuming that two fans are always necessary simply because the roof is large.

3. Confirm Hanging Height and Blade Clearance

Available ceiling height can be just as important as the pergola’s floor area. A fan that matches the area may still be unsuitable if the roof is too low or nearby beams restrict the blades.

Measure the following before ordering:

  1. Floor-to-beam height
  2. Total drop created by the bracket, downrod, and fan body
  3. Distance between the blade tips and nearby beams
  4. Distance from posts, walls, lights, and heaters
  5. Roof slope at the intended mounting point

The blades must have sufficient open space to rotate without contacting structural components. Adequate clearance also allows the fan to move air more effectively.

If the metal roof is sloped, confirm that the selected mounting system allows the downrod to remain vertical. Do not assume that a standard bracket is compatible with every roof angle.

The required installation height and clearances should ultimately follow the product instructions and applicable local requirements.

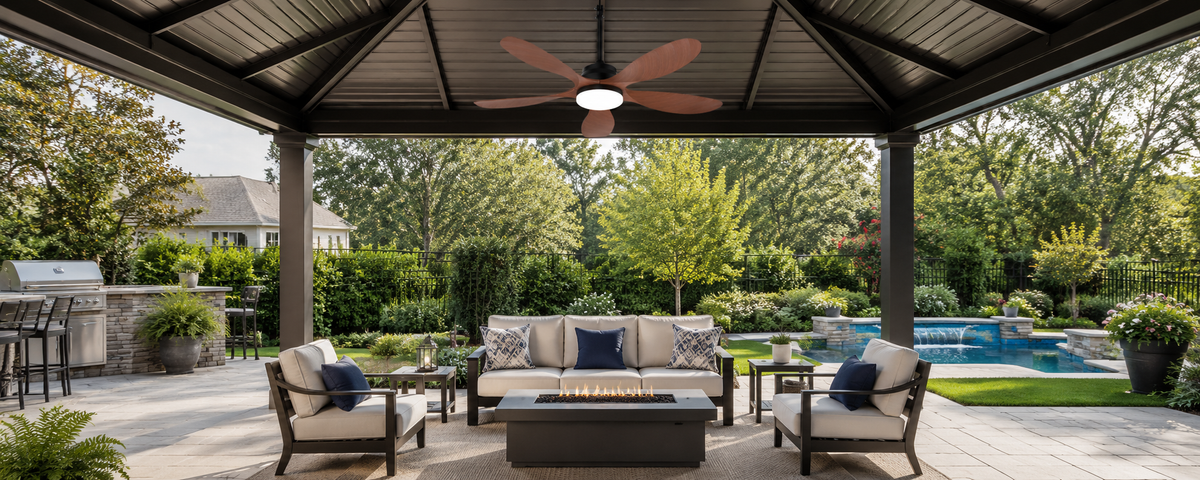

4. Decide Where the Solar Panel Will Be Installed

A metal roof blocks direct sunlight from reaching the area beneath it, but that does not prevent a solar ceiling fan from operating. The fan and solar panel can be installed in different locations.

The fan can remain under the covered pergola while the panel is placed where it receives stronger sunlight.

Panel location Potential advantage What to confirm
On top of the metal roof Often receives direct sunlight Approved mounting method, roof penetrations, drainage, wind exposure, and access
On a sunny side of the pergola May simplify access and maintenance Daily shade pattern, orientation, and structural support
On a nearby wall or fence Keeps the panel separate from the roof Cable distance, sun exposure, and secure attachment
On an independent support Offers flexible orientation Stability, cable protection, and risk of accidental contact

Mounting a panel directly on a metal roof should not be treated as the default solution. Roof penetrations can affect drainage, water resistance, and the pergola warranty. The mounting method must also withstand local wind conditions.

Check the pergola manufacturer’s requirements before drilling into or modifying the roof.

Observe Sunlight Throughout the Day

A location that is sunny at noon may be shaded during the morning or afternoon. Before selecting a panel position, observe the site at different times and consider:

  • Shade from the metal roof
  • Nearby trees
  • Adjacent buildings
  • Posts, beams, and roof edges
  • Seasonal changes in the sun’s position
  • Leaves, dirt, or debris that could cover the panel

For reliable charging, select a location with consistent direct sunlight rather than the location that is simply closest to the fan.

5. Plan the Cable Route Before Buying

Ventallion’s fan and solar panel can be positioned separately using the included extended cable. This flexibility is particularly useful for a shaded pergola, but the complete cable route should be measured before ordering.

Measure along the actual path the cable will follow. A straight-line measurement between the panel and fan is not enough because the cable may need to run:

  • Around a roof edge
  • Along a post
  • Across or around a beam
  • Down to the battery controller
  • Around doors or other fixtures

Ventallion models include a 5-meter cable for flexible panel and controller placement. Confirm that this length accommodates the entire planned route without stretching the cable or placing connectors under tension.

Keep the cable away from:

  • Sharp metal edges
  • Roof drainage paths
  • Moving louvers or doors
  • Hot surfaces
  • Areas where it could be pulled or tripped over
  • Locations where water regularly collects

Suitable clips or protective routing materials may be needed to secure the cable. Do not make unsupported cable modifications or use an unapproved extension, as this could affect performance or product coverage.

6. Check Weather Exposure and IP Ratings

A metal roof offers overhead protection, but it does not make every location beneath the pergola equally sheltered. Wind-driven rain can enter from the sides, while condensation and roof runoff may expose particular areas to moisture.

Ventallion solar ceiling fans feature an IP65 weather-resistant design and are intended for covered outdoor spaces. However, IP65 should not be interpreted as permission to install the system in any outdoor condition.

IP65 generally indicates protection against dust and water jets. It does not mean that a product:

  • Can be submerged
  • Is suitable for standing water
  • Can be installed where roof runoff pours directly onto it
  • Is protected against every extreme storm
  • Is automatically suitable for corrosive coastal conditions

Also confirm which components carry the stated rating. The fan, solar panel, battery controller, connectors, and charging ports may have different installation requirements even when sold as part of one system.

Choose a covered mounting location and follow the manufacturer’s instructions for component placement and weather protection.

7. Consider Heat From the Metal Roof

Metal roofs can become hot in direct sunlight. Although this does not automatically prevent installation, heat should be considered when choosing locations for the fan’s battery controller, wiring, and connectors.

Avoid placing electrical components directly against an unusually hot roofing surface unless the product instructions explicitly permit it. Components should have appropriate ventilation and should not be enclosed in a small space where heat can accumulate.

The solar panel needs direct sunlight to generate power, but the battery controller should still be installed according to its specified operating and placement requirements. The panel and battery do not need to occupy the same location.

A practical layout may place:

  • The fan beneath the covered roof
  • The panel in direct sunlight
  • The battery controller on a protected post or wall
  • The cable along a secured route between the components

8. Check Battery, Lighting, and Nighttime Use

A battery-backed solar-powered pergola fan can store solar energy for use after sunset. This is useful for metal-roof pergolas used as evening dining or entertaining spaces.

Ventallion’s 42-inch model includes a 10,000mAh LiFePO4 battery, while the 52-inch model includes a 12,000mAh LiFePO4 battery. Both models also include an integrated LED light with three color-temperature options.

Actual operating time depends on:

  • The amount of solar charging received
  • Battery state and condition
  • Selected fan speed
  • Whether the LED light is used
  • Weather and seasonal sunlight
  • Whether the fan and light operate simultaneously

High fan speeds normally use stored energy more quickly than low speeds. Running the fan and light together also consumes more energy than using either function alone.

If evening operation is important, choose the panel location and charging setup before installation rather than relying on estimated runtime alone.

9. Metal-Roof Pergola Pre-Purchase Checklist

Use this checklist before ordering a solar ceiling fan with light and battery:

  • Measure the primary occupied area.
  • Choose the fan using the verified coverage range.
  • Identify a structural beam or approved mounting point.
  • Confirm that the roof sheet will not serve as the only support.
  • Measure the floor-to-beam height.
  • Check blade clearance from beams, posts, walls, and fixtures.
  • Confirm whether the roof is level or sloped.
  • Select a panel location with dependable direct sunlight.
  • Measure the complete cable route.
  • Protect the cable from sharp metal edges and heat.
  • Check roof drainage and wind-driven rain exposure.
  • Confirm the installation requirements for every component.
  • Decide whether nighttime fan or light operation is needed.
  • Ask the pergola manufacturer about structural or warranty restrictions.
  • Use a qualified installer when structural compatibility is uncertain.

10. Which Ventallion Size Should You Choose?

Both Ventallion models combine solar charging, battery backup, adjustable airflow, remote control, and integrated lighting. The main buying decision is the size of the usable area.

Choose the 42-Inch Model for a Compact Activity Area

The 42-inch solar ceiling fan is the more suitable option when:

  • The usable area is 12 × 12 ft to 15 × 15 ft
  • The pergola has a compact dining or seating arrangement
  • A smaller blade span better fits between beams
  • Airflow needs to be concentrated over one activity zone

Its smaller diameter can also make placement easier in a pergola with tighter structural spacing. Blade clearance must still be verified before purchase.

Choose the 52-Inch Model for a Larger Area

The 52-inch solar ceiling fan is designed for:

  • Usable areas from 15 × 15 ft to 20 × 20 ft
  • Wider seating or dining zones
  • Larger pergolas that need broader airflow
  • Layouts with enough blade and hanging clearance

The larger blade span should not be selected on area alone. Make sure the 52-inch fan can be centered without interfering with beams, posts, lighting, or other fixtures.

What About a 15 × 15 ft Pergola?

A 15 × 15 ft area falls within the recommended range of both models.

Choose between them according to:

  • Available blade clearance
  • Mounting position
  • Furniture layout
  • Preferred airflow
  • Ceiling height
  • The location of the main occupied area

The 42-inch model may suit a more compact or structurally restricted layout. The 52-inch model may be preferable when there is adequate clearance and broader airflow is desired.

FAQ

Can You Install a Ceiling Fan Directly on a Metal Pergola Roof?

A fan should not be attached solely to a thin metal roofing panel. It should be secured to a suitable structural beam, reinforced support, or manufacturer-approved mounting point capable of handling the fan’s weight and rotating load.

Will a Metal Roof Block Solar Charging?

The roof will shade the area beneath it, but the solar panel does not have to be installed beside the fan. It can be placed on the roof or at another suitable sun-facing location, provided the mounting method and cable route meet the system’s requirements.

Can the Solar Panel Be Mounted on Top of the Metal Roof?

It may be possible, but compatibility depends on the roof structure, panel bracket, drainage, sealing requirements, wind exposure, and pergola manufacturer’s instructions. Confirm these factors before drilling or making roof penetrations.

What Size Solar Ceiling Fan Works for a 15 × 15 ft Pergola?

Both the 42-inch and 52-inch Ventallion models include 15 × 15 ft within their recommended ranges. Choose according to the mounting position, blade clearance, furniture arrangement, and preferred airflow.

Can a Solar Ceiling Fan Work at Night?

Yes. A solar ceiling fan with battery backup can use stored energy after sunset. Actual runtime depends on the battery charge, fan speed, lighting use, weather, and the amount of sunlight the panel received.

Does a Solar Ceiling Fan Need Household Wiring?

Ventallion solar ceiling fans do not require connection to standard household wiring for normal solar-powered operation. The panel, battery system, and fan form a separate power setup, making them practical for pergolas where adding an electrical circuit would be inconvenient.

Is an IP65 Solar Ceiling Fan Completely Waterproof?

No. IP65 indicates a defined level of protection from dust and water jets, but it does not mean the product can be submerged or installed in every exposed location. The fan should be installed in a suitable covered outdoor area according to the product instructions.

Can One Fan Cover a Pergola Larger Than 20 × 20 ft?

One 52-inch fan should not automatically be assumed to cover an area larger than 20 × 20 ft. A large, elongated, or divided pergola may require two fans or a layout focused on specific occupied zones.
