How to Choose a Solar Ceiling Fan for a 12×12 Pergola

Quick Answer
For a standard 12×12 ft pergola, a 42-inch solar ceiling fan is the recommended starting point. Ventallion’s 42-inch model is designed for spaces from 12×12 ft to 15×15 ft, while the 52-inch model is intended for larger areas from 15×15 ft to 20×20 ft.

Fan size is only one part of the decision. Before buying, you should also check the mounting location, blade clearance, solar-panel exposure, cable route, lighting needs, and whether you want to use the fan after sunset.

What Size Solar Ceiling Fan Is Best for a 12×12 Pergola?

A 42-inch solar ceiling fan is generally the better match for a 12×12 ft pergola. This size sits at the beginning of the model’s stated 12×12–15×15 ft recommended space range, making it a practical choice for a compact outdoor seating or dining area.

A 52-inch fan is not the default recommendation for this space. Its recommended range begins at 15×15 ft, so it is better suited to larger pergolas.

Why a 42-Inch Fan Is the Recommended Starting Point

A 12×12 ft pergola usually contains one main activity zone, such as:

  • A small outdoor dining table
  • A lounge set
  • A hot-tub seating area
  • A compact conversation space
  • A centered group of chairs

When the mounting point is near the center, one 42-inch fan can serve this type of layout without unnecessarily moving to a larger model.

The recommendation should still be based on the pergola’s usable area—not only the dimensions shown on its product listing. Columns, cabinets, screens, furniture, and offset beams can change where the fan can be installed and where people will actually feel the airflow.

Should You Choose a 52-Inch Fan Instead?

A larger fan is not automatically the better fan.

Ventallion’s 52-inch solar ceiling fan is intended for spaces from 15×15 ft to 20×20 ft. Because a standard 12×12 ft pergola is below that range, the 52-inch model should not be treated as the default choice.

Consider a different layout or seek installation guidance if the pergola:

  • Has an unusual or highly open shape
  • Cannot support a centered fan
  • Contains separate seating zones
  • Has beams or roof components close to the blades
  • Connects directly to a much larger covered area

Use this size guide as a starting point:

Pergola size Recommended fan size Decision note
12×12 ft 42-inch Recommended starting point
Larger than 12×12 but below 15×15 ft 42-inch Within the stated 42-inch range
15×15 ft 42- or 52-inch Both model ranges include this size
Larger than 15×15 up to 20×20 ft 52-inch Within the stated 52-inch range
Larger than 20×20 ft Layout review needed Assess the shape, mounting points, and whether multiple fans are appropriate

For a more detailed comparison of the two models, read the 42 vs. 52 inch solar ceiling fan size guide.

Measure the Usable Pergola Area, Not Just the Roof

A pergola sold as “12×12” may not provide a full 12×12 ft of unobstructed space below the roof. Posts, beams, built-in counters, curtains, screens, or furniture can reduce the functional area.

Before choosing a fan, measure the portion of the pergola where people will sit or gather.

Measure the Covered Activity Area

Start with three questions:

  1. Where will people spend most of their time?
  2. Can the fan be positioned above or near that area?
  3. Are any structural or decorative features likely to block the airflow?

For example, a dining table located in the center of the pergola creates a straightforward single-zone layout. A sofa at one end and a grill station at the other may create two separate zones, even though the total structure is still 12×12 ft.

Do not count space occupied by permanent cabinets, storage units, thick columns, or other areas where airflow is not needed.

Check Whether the Fan Can Be Centered

A centered mounting point usually provides the most balanced result in a square pergola. However, the roof structure may determine where the fan can safely be attached.

Inspect the beam arrangement before buying. If the available mounting point is significantly off-center, consider how that position relates to the seating area. In some cases, placing the fan above the people using the space matters more than centering it within the roof.

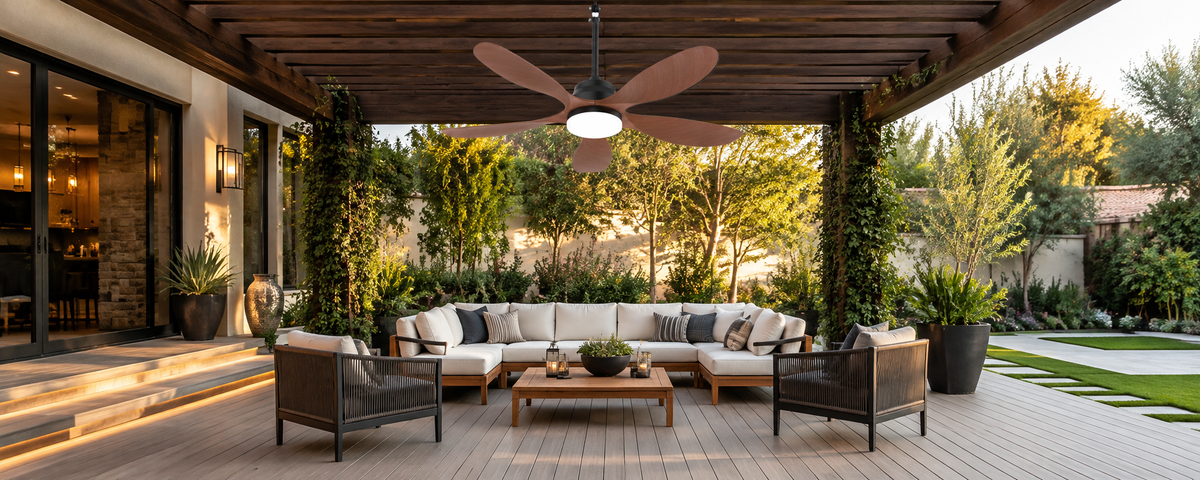

Check Mounting Height and Blade Clearance

A fan that matches the floor area may still be unsuitable if the pergola does not provide enough mounting height or clearance around the blades.

Measure from the proposed mounting surface to the floor, then account for the complete installed height of the fan and light assembly. Follow the clearance and mounting requirements in the product’s installation manual.

Measure From the Beam to the Floor

Confirm:

  • The height of the supporting beam or mounting surface
  • The fan’s total installed drop
  • The location of the fan’s lowest point
  • Whether an integrated light changes the total installed height
  • Whether the installation complies with applicable local requirements

A low pergola may require a different mounting configuration from a tall, open structure. Do not select a downrod or mounting method until its compatibility has been verified.

Leave Adequate Space Around the Blades

The blades should not interfere with:

  • Pergola beams
  • Posts or braces
  • Adjustable louvers
  • Retractable roof components
  • Curtains or privacy screens
  • String lights
  • Hanging plants
  • Vines or other landscaping

This is especially important for louvered pergolas. The roof must be able to open and close without entering the fan’s operating area.

Use the minimum clearance requirements in the installation manual instead of relying on a general rule that may not apply to the specific model or structure.

Inspect the Mounting Surface

Before installation, verify that:

  • The mounting surface is stable and structurally suitable
  • The selected location can support the complete fan assembly
  • The mounting surface is compatible with the supplied hardware
  • The beam is level or the approved mounting system accommodates its angle
  • Additional reinforcement is installed if required

If you are uncertain about the structure’s load capacity, consult a qualified installer rather than attaching the fan to a decorative or unsupported component.

Plan the Solar-Panel Location Before Buying

One of the main advantages of a solar-powered system is that the fan and solar panel do not have to occupy the same lighting conditions. The fan can remain under the shaded pergola while the panel is positioned where it can receive stronger sunlight.

That arrangement must be planned before installation.

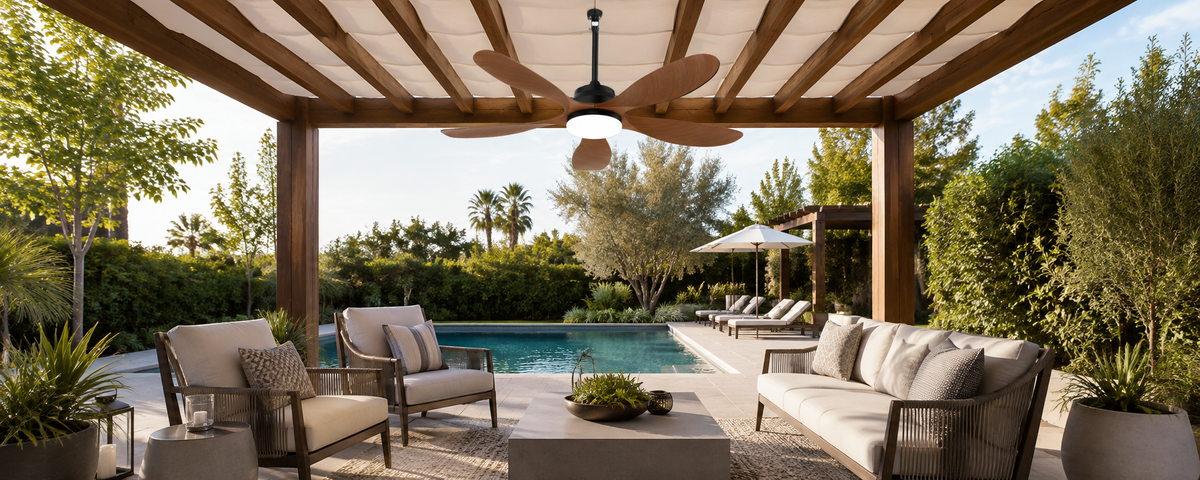

The Fan Can Be in Shade While the Panel Is in Sun

Do not assume the panel should be placed directly above the fan. A pergola roof that keeps the seating area comfortable may also block the sunlight needed for charging.

Depending on the property and approved mounting options, a suitable panel location may be:

  • On top of the pergola
  • On a nearby wall
  • On another sun-exposed structure
  • In a separate location within the available cable reach

The correct location depends on the product instructions, available sunlight, mounting safety, and cable length.

Check Shade Throughout the Day

A location that appears sunny at noon may be shaded during the morning or afternoon. Observe the planned panel position at different times of day.

Look for shade caused by:

  • The house
  • Trees and branches
  • Fences
  • The pergola roof
  • Nearby buildings
  • Seasonal changes in the sun’s path

Solar charging performance depends on actual conditions. Weather, partial shade, panel orientation, fan speed, and light use can all affect the energy available for later operation.

Plan the Cable Route

Before buying, confirm that the included cable can reach from the panel to the fan’s electrical components without unsafe routing.

The cable should not:

  • Interfere with moving louvers
  • Rub against sharp metal edges
  • Hang loosely over walkways
  • Create a trip hazard
  • Place connectors in areas where water can collect
  • Require an unapproved modification

Do not assume that any third-party extension cable will be compatible. Check the product instructions or contact the manufacturer before modifying the solar connection.

Choose Features That Match How You Use the Pergola

Once the 42-inch size and installation conditions have been confirmed, consider how the fan will be used during the day and at night.

Feature Why it matters in a 12×12 pergola What to verify
42-inch fan size Matches the stated 12×12–15×15 ft space range Official model specifications
Battery storage Allows energy to be stored for later use Charging and operating conditions
Integrated light Adds illumination without a separate ceiling fixture Brightness and independent controls
Remote control Makes fan and light adjustments more convenient Available functions and operating instructions
Outdoor protection Helps the system withstand its approved outdoor environment Rating and placement requirements for each component
Separate solar panel Allows the fan to remain in shade while the panel receives sun Cable length and approved mounting locations

Do You Need an Integrated Light?

A solar ceiling fan with light and battery backup can be useful when the pergola is used for evening meals, entertaining, or relaxing after sunset. It may also reduce the need to install a separate central light fixture.

Before choosing a fan with a light, ask:

  • Is the pergola already illuminated by string lights or wall fixtures?
  • Do you need task lighting over a table?
  • Can the fan and light be controlled separately?
  • Will you frequently operate the fan and light at the same time?

Using the light consumes stored energy, so nighttime expectations should be evaluated according to the actual operating mode.

Do You Need Battery Storage?

A battery is important if you plan to use the fan when the panel is not actively producing enough power, including after sunset.

Runtime is not one fixed number. It can vary according to:

  • Battery charge level
  • Solar conditions during the day
  • Selected fan speed
  • Whether the light is operating
  • Whether the fan and light are used simultaneously
  • Weather and seasonal conditions

Compare runtime information only when the testing conditions are clearly stated. Avoid treating a maximum runtime claim as the expected result for every speed and lighting mode.

Is Remote Control Important?

A remote control is particularly convenient in a pergola because the fan may be mounted above a dining table or lounge area. Check which functions the remote operates, such as:

  • Fan power
  • Speed selection
  • Light control
  • Timer settings
  • Other supported operating modes

Verify the specific model’s functions rather than assuming all solar ceiling fans use the same controls.

Is One Fan Enough for a 12×12 Pergola?

For a standard 12×12 ft pergola with an open layout and a mounting point near the center, one 42-inch solar ceiling fan is the recommended starting configuration.

A second fan should not be necessary solely because the pergola is used outdoors. However, the layout may need further evaluation if:

  • The fan cannot be mounted near the occupied area
  • A central beam divides the pergola into separate zones
  • The structure is long or irregular rather than square
  • Furniture creates two distinct gathering areas
  • Screens or solid walls substantially change airflow
  • Strong localized airflow is required in more than one area

The number of fans should follow the usable layout and mounting positions—not an assumption that more equipment will always produce a better result.

When a Solar Ceiling Fan May Not Be the Right Choice

A solar ceiling fan can be a practical solution for a pergola, especially when running conventional electrical wiring would be inconvenient. It is not the right option for every property.

Reconsider the installation if:

  • There is no location where the solar panel can receive adequate sunlight
  • The included cable cannot safely reach the planned panel position
  • The pergola lacks a structurally suitable mounting point
  • The blades would be too close to beams, louvers, lights, or plants
  • The user expects continuous high-speed operation regardless of charging conditions
  • The installation location exceeds the environmental conditions approved for the product
  • Local building or electrical requirements call for professional installation or permitting

“Outdoor” also does not automatically mean that every component can be installed in any exposed location. Verify the environmental rating and installation requirements for the fan, solar panel, battery housing, connectors, and controls separately.

For a broader overview of installation conditions and product features, see this solar ceiling fan buying guide for pergolas.

12×12 Pergola Pre-Purchase Checklist

Use this checklist before ordering:

  • The usable pergola area is approximately 12×12 ft.
  • A 42-inch fan matches the stated 12×12–15×15 ft space range.
  • The preferred mounting point is close to the main seating or dining area.
  • The mounting surface is structurally suitable.
  • Floor and blade clearances meet the installation instructions.
  • Beams, louvers, lights, plants, and curtains will remain clear of the blades.
  • The solar panel has access to an appropriate sun-exposed location.
  • The supplied cable can reach the planned panel location safely.
  • The expected fan and light usage matches the battery and charging conditions.
  • The environmental rating of each relevant component has been checked.
  • Installation and warranty requirements have been reviewed.

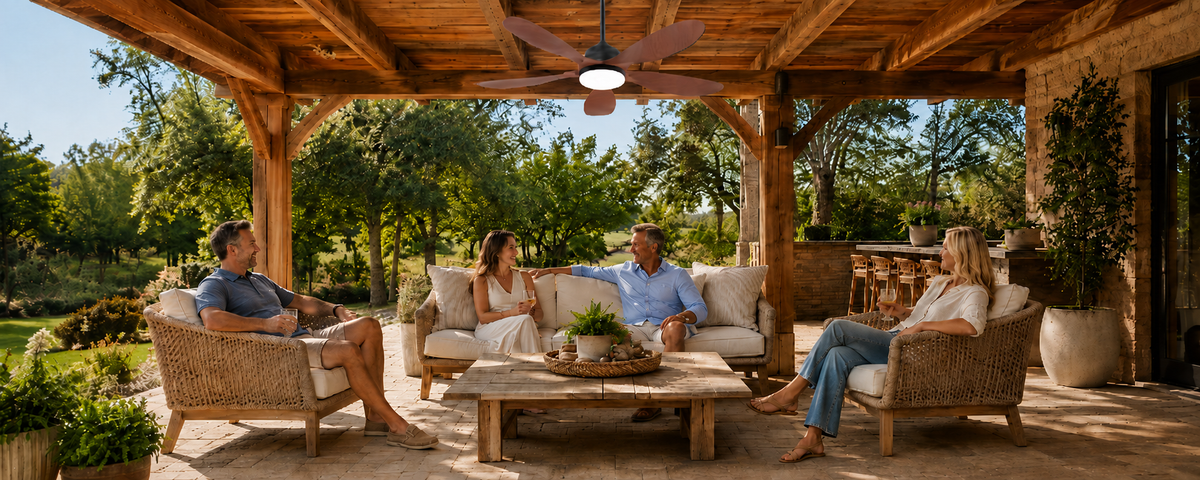

Recommended Solar Ceiling Fan for a 12×12 Pergola

For a typical 12×12 ft pergola, choose the Ventallion 42-inch model as the starting recommendation. Its stated space range is 12×12 ft to 15×15 ft, which directly includes a standard 12×12 pergola.

It is best suited to a buyer who:

  • Has one main seating or dining area
  • Can install the fan near the center of that area
  • Has a safe, suitable supporting beam
  • Can place the solar panel where it receives adequate sunlight
  • Wants fan operation without connecting the fixture to the home’s conventional electrical circuit
  • Values outdoor airflow and lighting in one fixture

Confirm the installation dimensions, component ratings, cable reach, operating modes, and current product specifications before ordering.

FAQ

What size ceiling fan do I need for a 12×12 pergola?

A 42-inch solar ceiling fan is the recommended starting point for a standard 12×12 ft pergola. Ventallion’s 42-inch model has a stated space range of 12×12 ft to 15×15 ft. The final decision should also account for the mounting position, usable seating area, blade clearance, and pergola structure.

Is a 52-inch ceiling fan too large for a 12×12 pergola?

A 52-inch fan is not the default recommendation for a 12×12 ft pergola. Ventallion’s 52-inch model is intended for spaces from 15×15 ft to 20×20 ft. For a standard 12×12 layout, begin with the 42-inch model unless an unusual structure or layout requires further evaluation.

Can a solar ceiling fan work under a shaded pergola?

Yes. The fan can be installed in the shaded area while the separate solar panel is placed where it receives better sunlight. Before buying, confirm that the planned panel location is suitable and that the supplied cable can reach the fan safely without unapproved modifications.

Can a solar ceiling fan run after sunset?

A model with battery storage can use energy collected during the day for operation after sunset. Actual runtime depends on charging conditions, battery charge, fan speed, light use, and weather. Review mode-specific runtime information and its testing conditions instead of relying only on a maximum-duration claim.

Does a pergola ceiling fan have to be installed in the center?

Not necessarily, but a centered position often provides more balanced airflow in a square 12×12 ft space. If structural beams prevent centered installation, prioritize a safe mounting point near the main occupied area. Ensure the blades maintain the required clearance from all surrounding components.

Can I install a solar ceiling fan myself?

That depends on the pergola structure, the manufacturer’s instructions, and applicable local requirements. The mounting point must safely support the complete assembly, and the panel and cable must be installed correctly. If you are uncertain about structural support, clearance, or installation safety, use a qualified professional.
